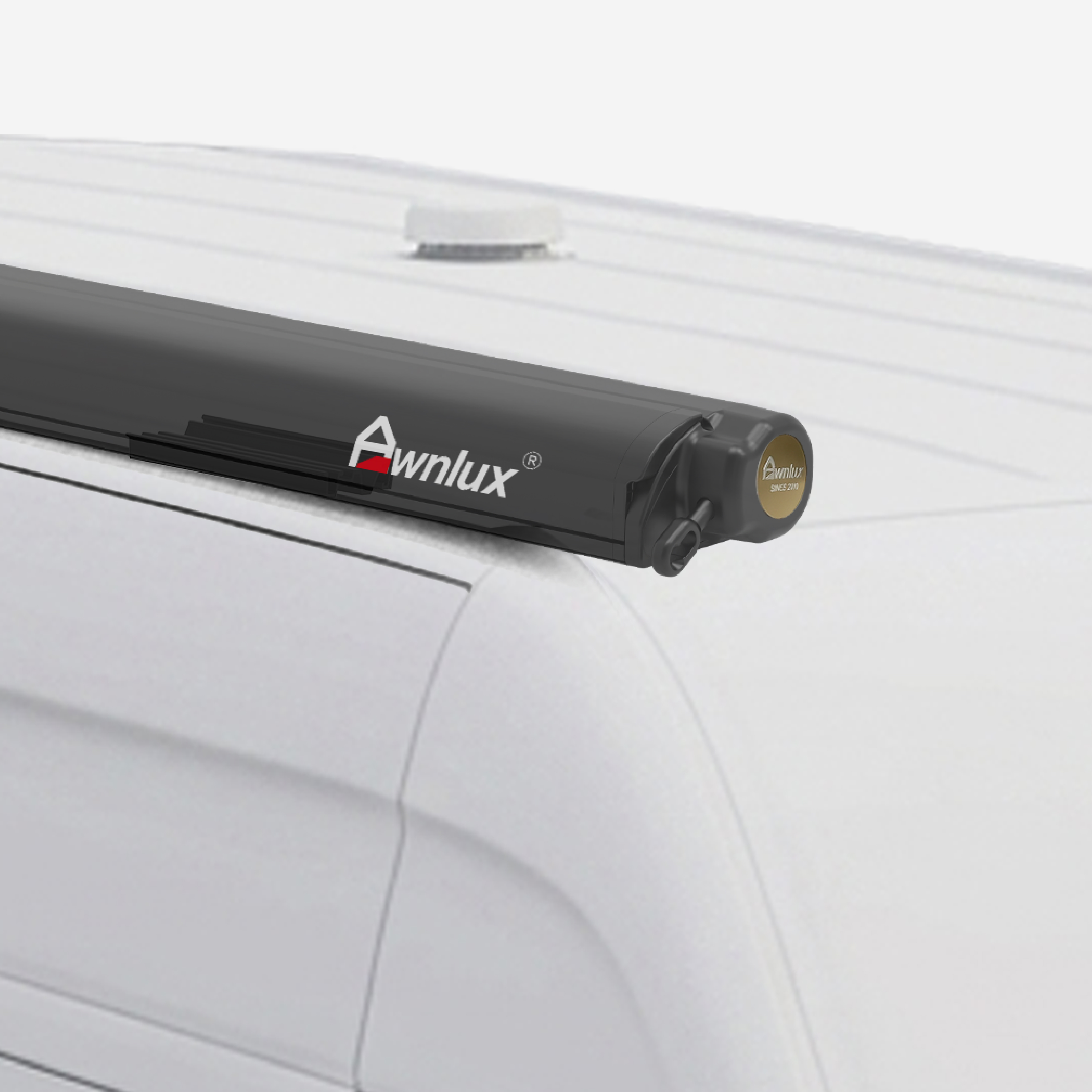

AWNLUX W5800 Roof Mounted RV Awning

Awnlux W5800 Roof Mount RV Awning — Full Cassette, Manual or Motorized, 150–600cm

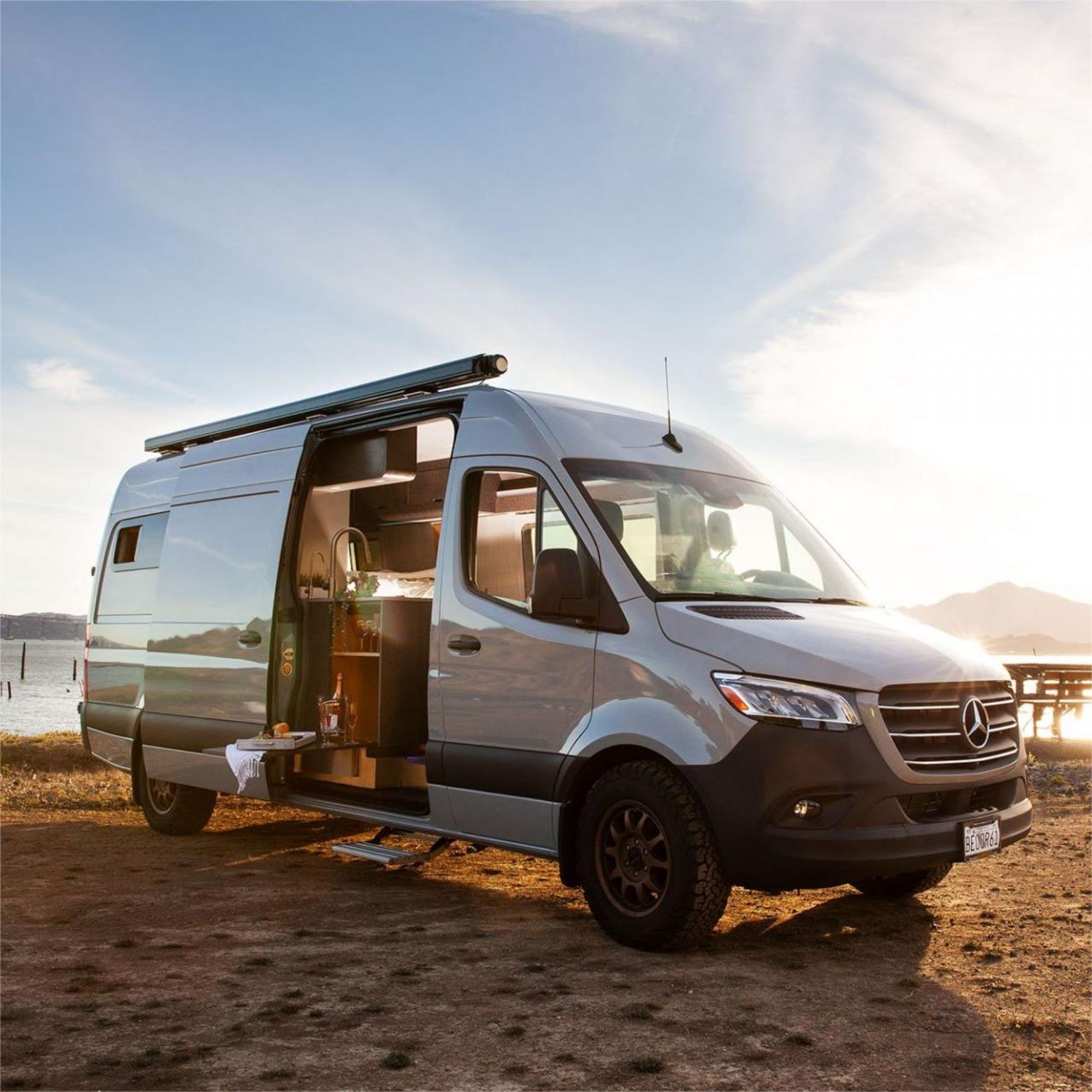

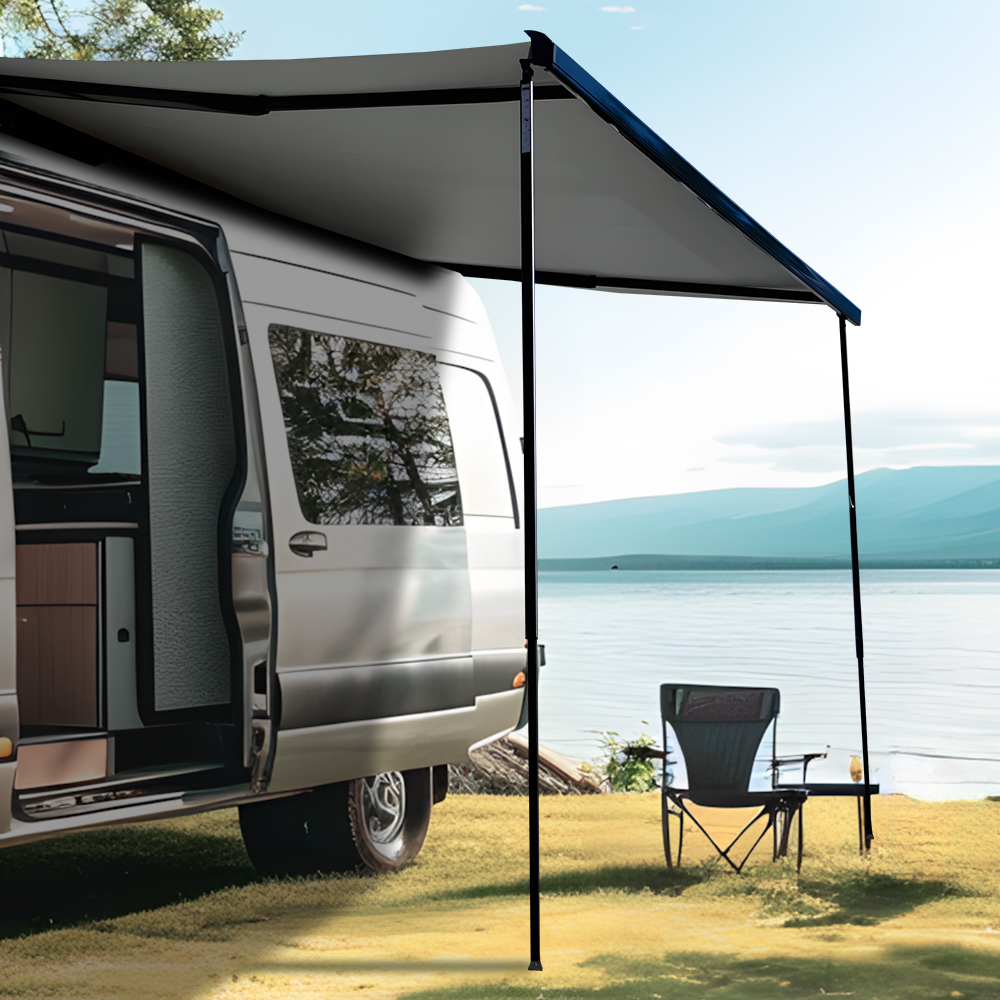

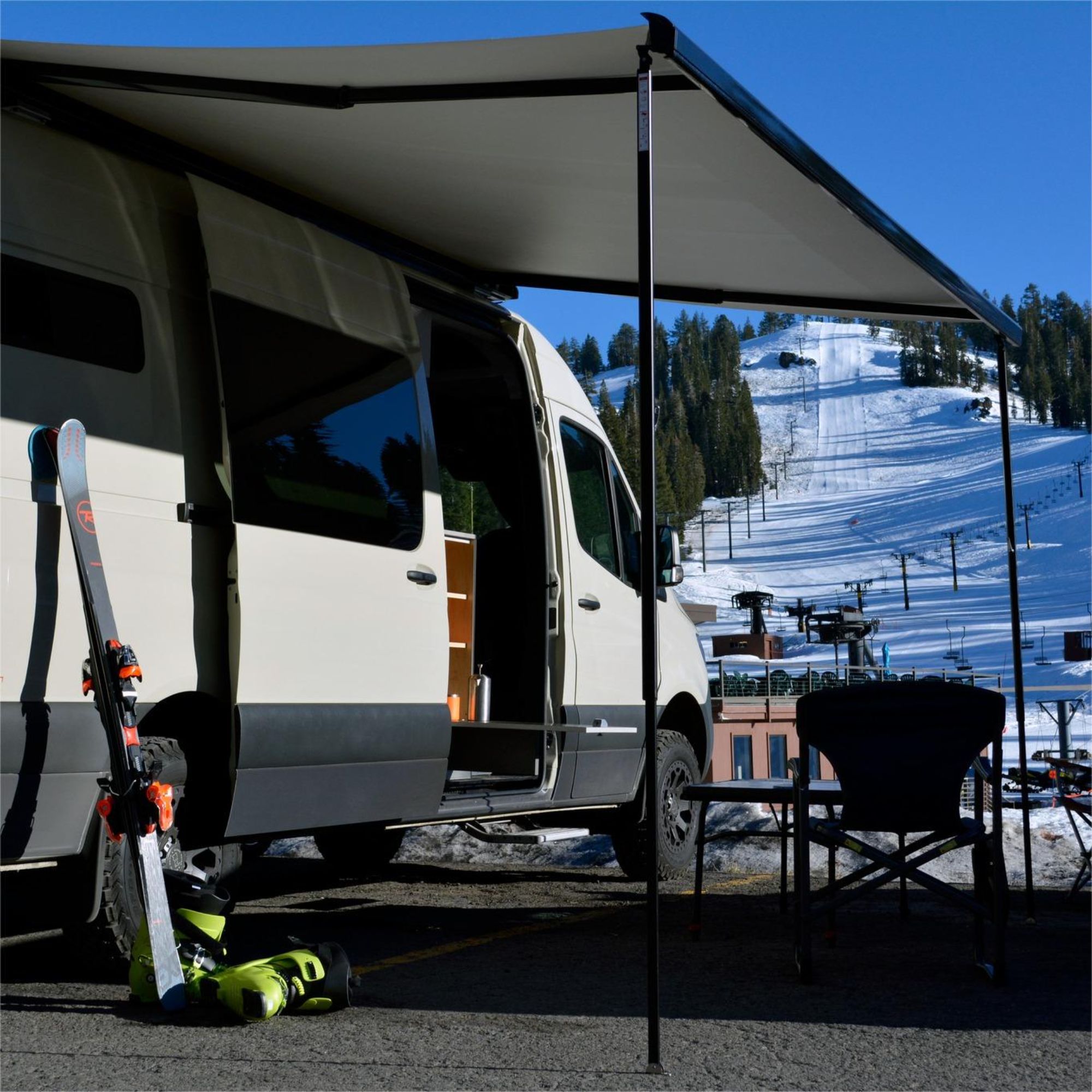

The W5800 is built for one specific situation: an RV or campervan where a wall-mount awning physically cannot fit. This happens when the side wall is not vertical — a curved or angled fiberglass body is common on Class B van conversions and some motorhomes. It also happens when windows, doors, locker hatches, or entry steps are positioned too close to the roofline, leaving no flat wall surface for a standard bracket. In either case, the W5800 bracket mounts on the roof edge instead of the side wall, and the awning opens outward and downward from there.

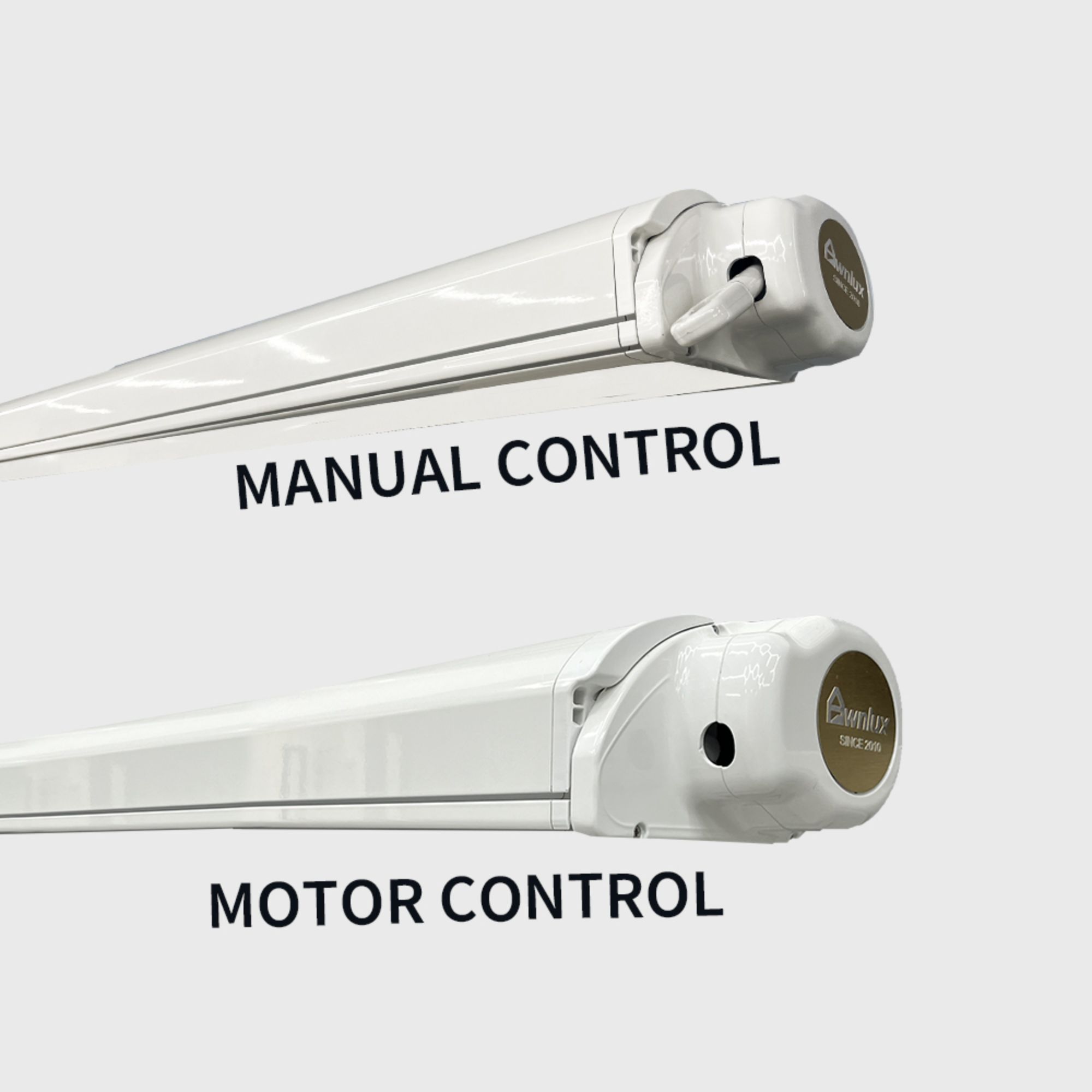

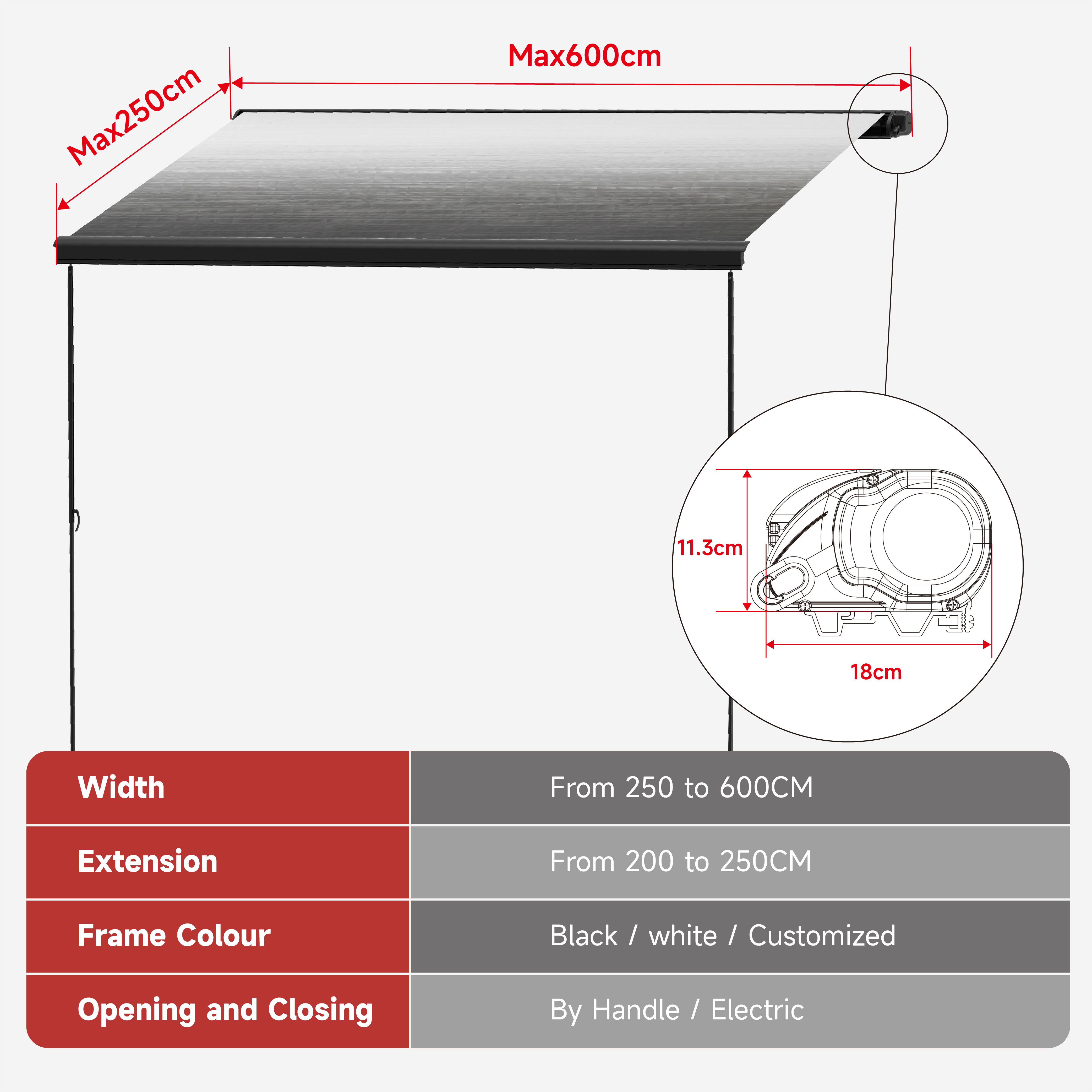

The W5800 is the full-size roof-mount model in the Awnlux range, covering 150cm to 600cm in width with up to 250cm of extension — the same maximum size as the wall-mount W5900. Both manual and motorized control versions are available. The motorized version includes a crank handle backup port so the awning can be closed manually if the motor or battery fails.

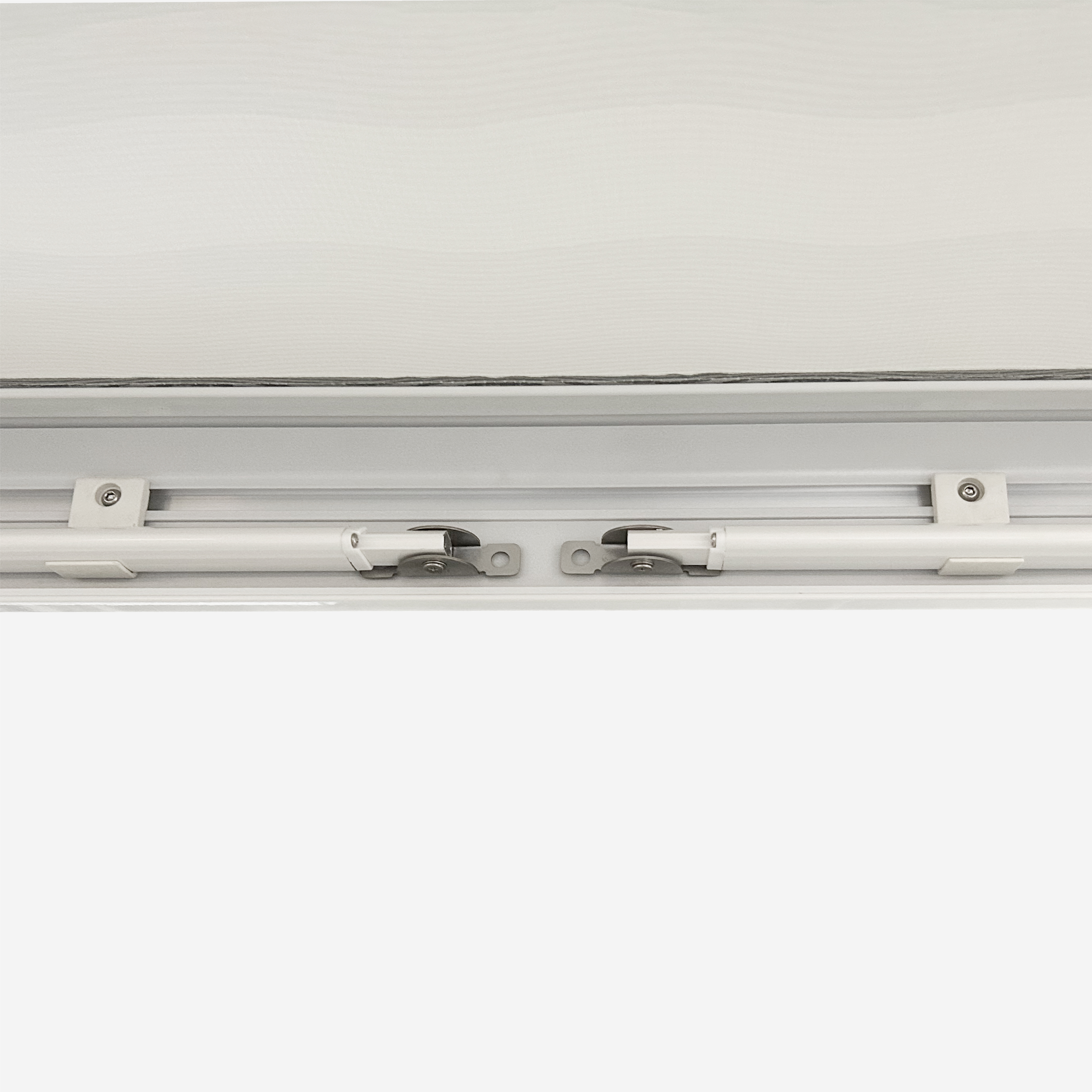

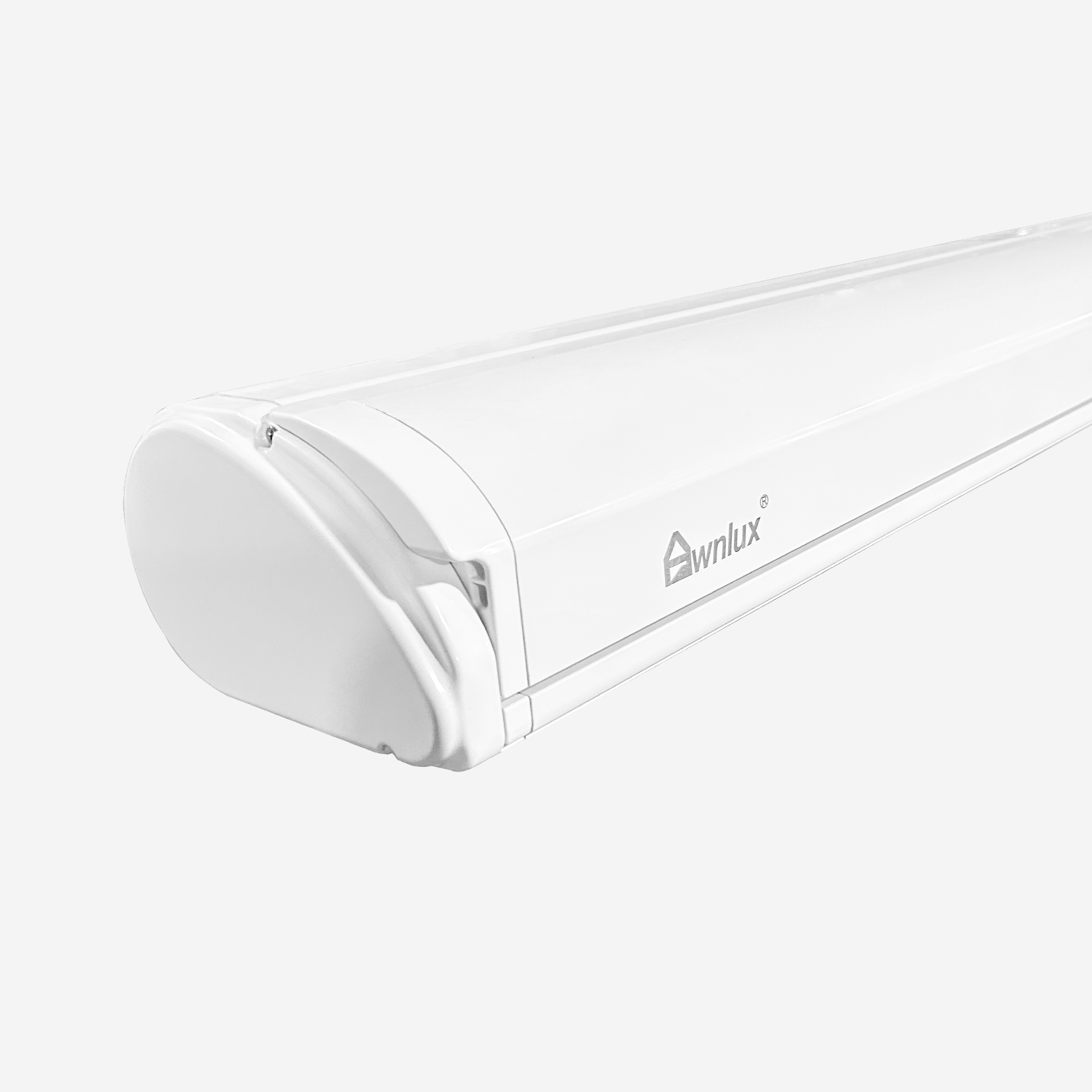

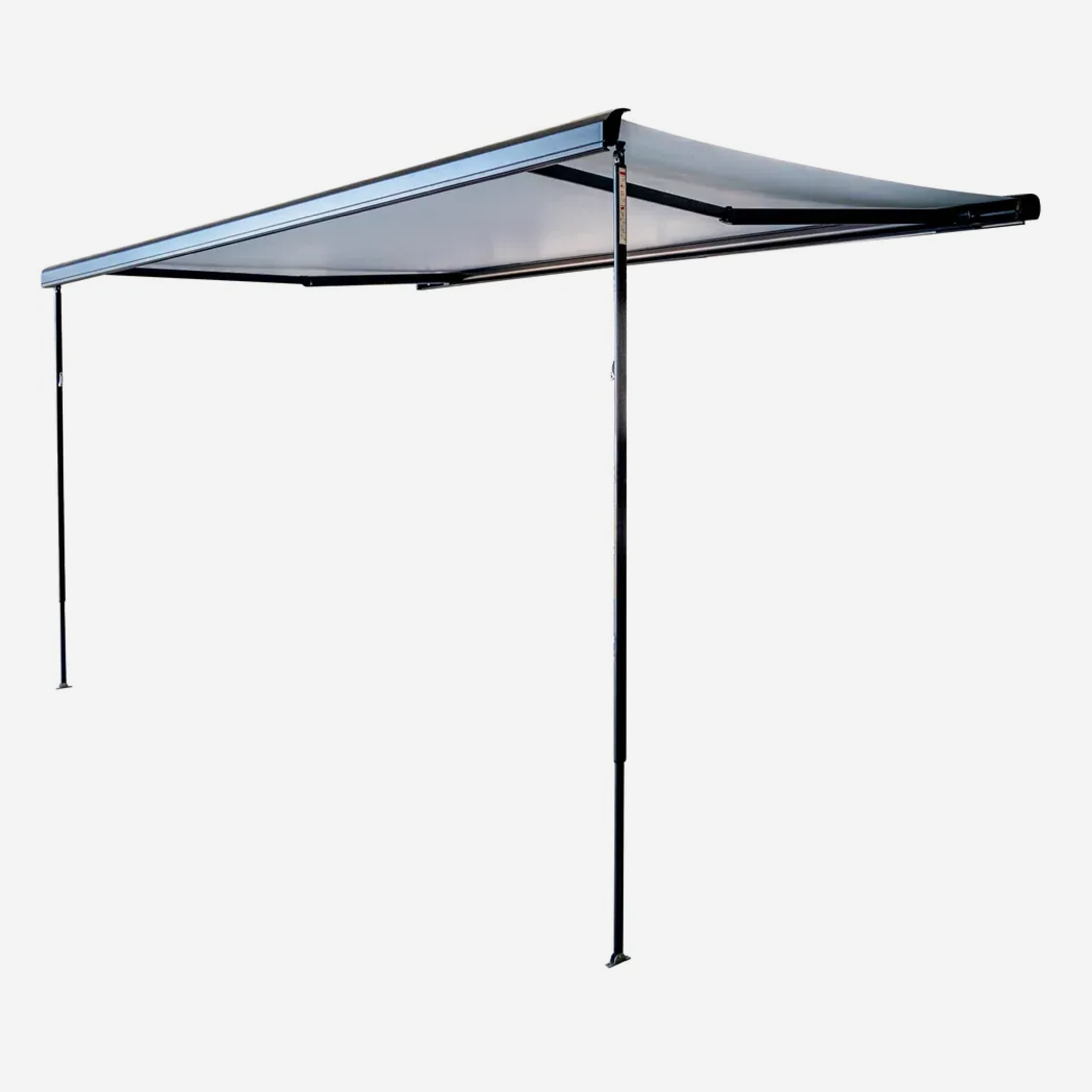

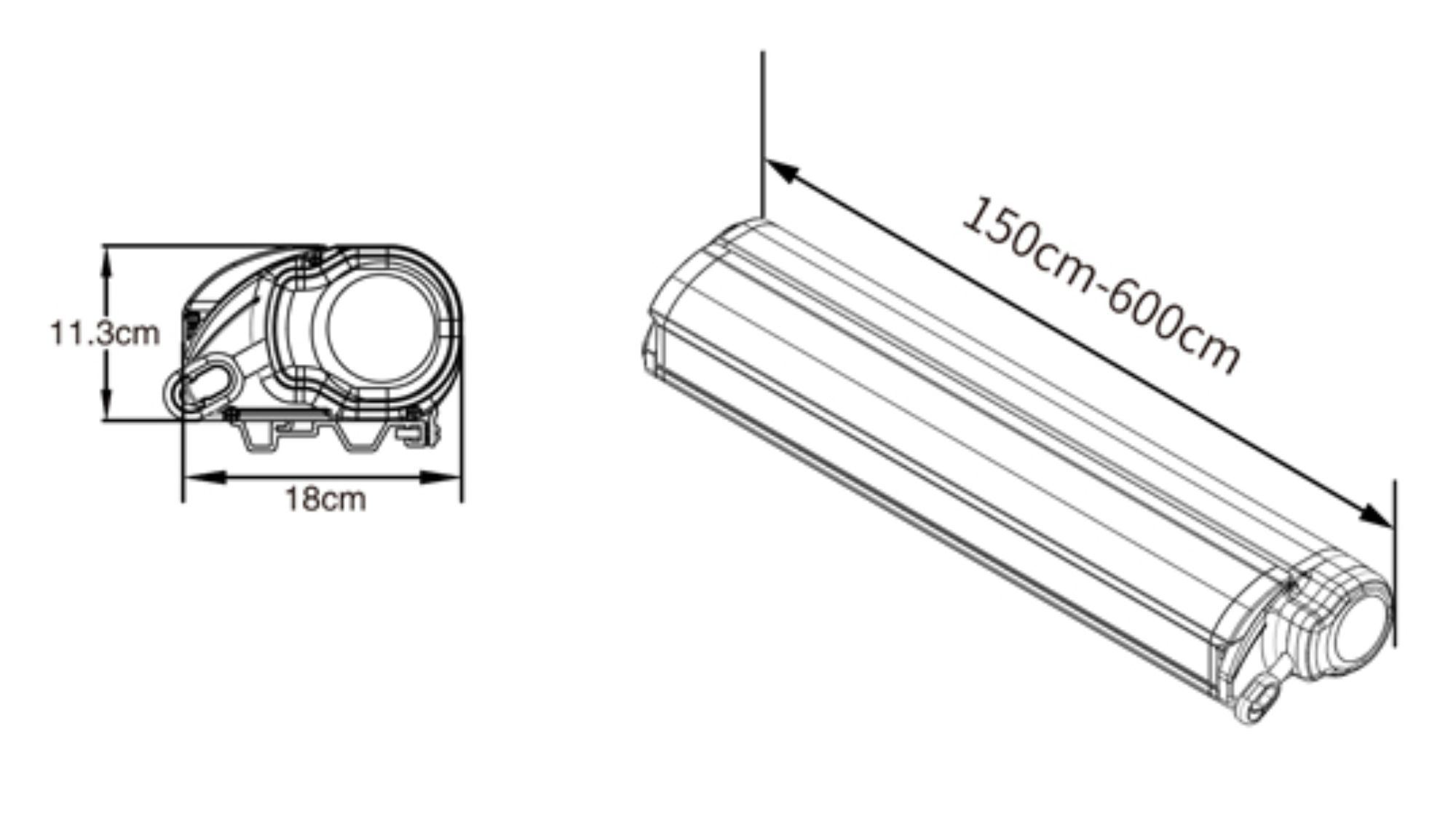

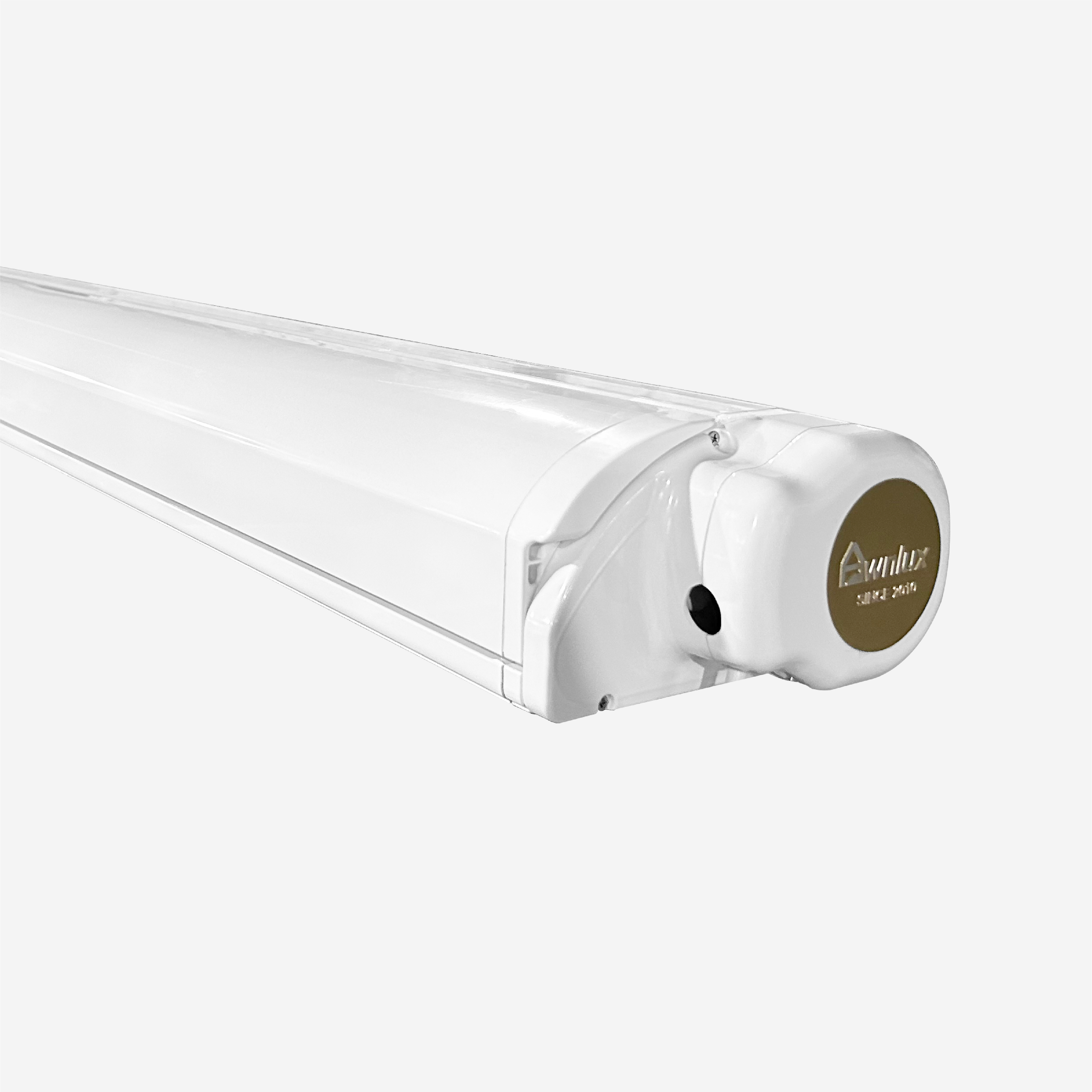

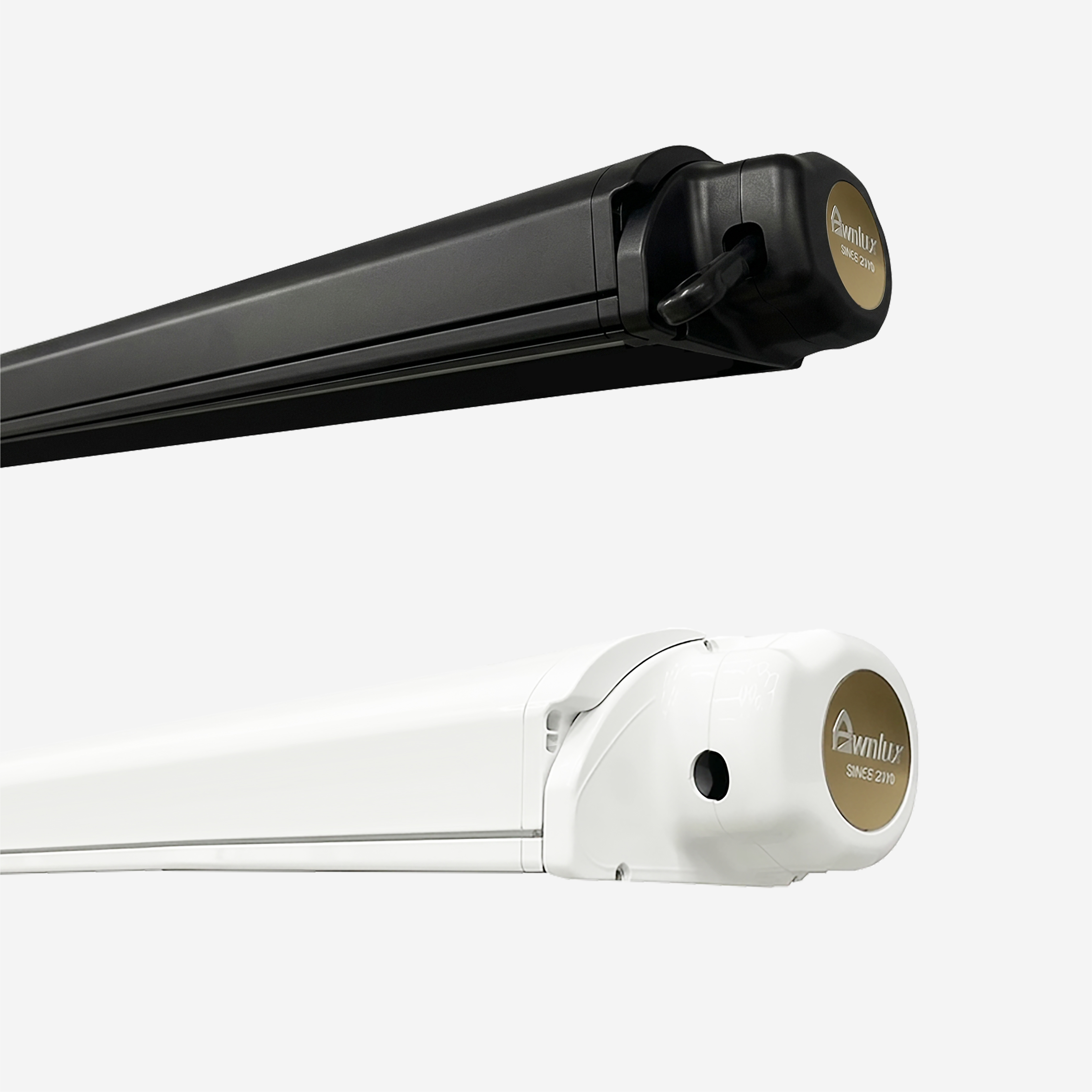

The W5800 uses a full cassette design — the aluminum shell fully encloses the fabric, roller tube, arms, and mechanism when the awning is retracted. This protects all internal components from UV exposure, road debris, rain, and dust during travel. The support legs store behind the front bar when retracted, and can be configured to fix against the vehicle body for a compact setup or extended to the ground for a wider covered area. The internal arm structure uses a thin steel wire rope reinforcement.

Buyers who need a narrower size range (200–400cm only) and prefer a lighter, more compact cassette profile should also consider the W5810. The W5810 uses a wide cloth-strip arm reinforcement (more rigid than steel wire), stores its support legs inside the front bar for a slimmer profile, and is manual-only. The W5800 is the right choice when sizes above 400cm or below 200cm are needed, or when motorized control is required. For OEM partners, the W5800 is available with custom frame colors, private label branding, and sizing within the full 150–600cm range.

When Does a Roof Mount Awning Make More Sense Than a Wall Mount?

Wall-mount awnings are simpler and generally lower cost. The W5800 is chosen when wall mount is not an option. The two most common situations:

Situation 1 — Non-vertical side wall Many Class B van conversions and some fiberglass-body motorhomes have a curved, angled, or stepped side panel. A wall-mount bracket needs a flat vertical surface to sit flush and carry the awning load safely. On a curved panel, the bracket cannot sit flush, and the load path is compromised. The W5800 bracket mounts on the roof edge where the surface is flat, regardless of what the side wall looks like.

Situation 2 — Windows, doors, or hatches blocking the wall On some van conversions, the window runs to within 20–30cm of the roofline, or the side door opens directly into the only available wall space. There is no room to fit a wall bracket without obstructing the door swing or drilling through a window frame. The W5800 moves the entire mounting point to the roof, which is almost always unobstructed.

If your RV has a flat vertical side wall with clearance for wall brackets, a wall-mount awning (W5500, W5510, or W5900 depending on size) will be simpler, lower cost, and easier to install. The W5800 is specifically for cases where the wall is not usable

Q1: When do I need a roof-mount awning instead of a wall-mount?

You need a roof-mount awning when the side wall of your van or RV cannot accommodate a standard wall bracket. The two most common reasons: (1) the side panel is curved or angled rather than flat and vertical, making it impossible to mount a bracket flush to the wall; (2) windows, doors, locker hatches, or steps are positioned where the bracket would need to go, leaving no usable wall space. If your side wall is flat and clear, a wall-mount model such as the W5500, W5700, or W5900 will be better.

Q2: What is the difference between W5800 and W5810?

Both are full cassette roof-mount awnings for the same vehicle types. W5800 covers 150–600cm width with manual or motorized control, stores support legs behind the front bar, and uses a thin steel wire internal arm reinforcement. W5810 covers 200–400cm, is manual-only, has a more compact cassette profile, stores support legs inside the front bar for a slimmer look, and uses a wide cloth-strip arm reinforcement which is more rigid. W5810 is more economical. W5800 is chosen when a wider size or motorized control is needed.

Q3: Can the motorized W5800 be closed manually if the power fails?

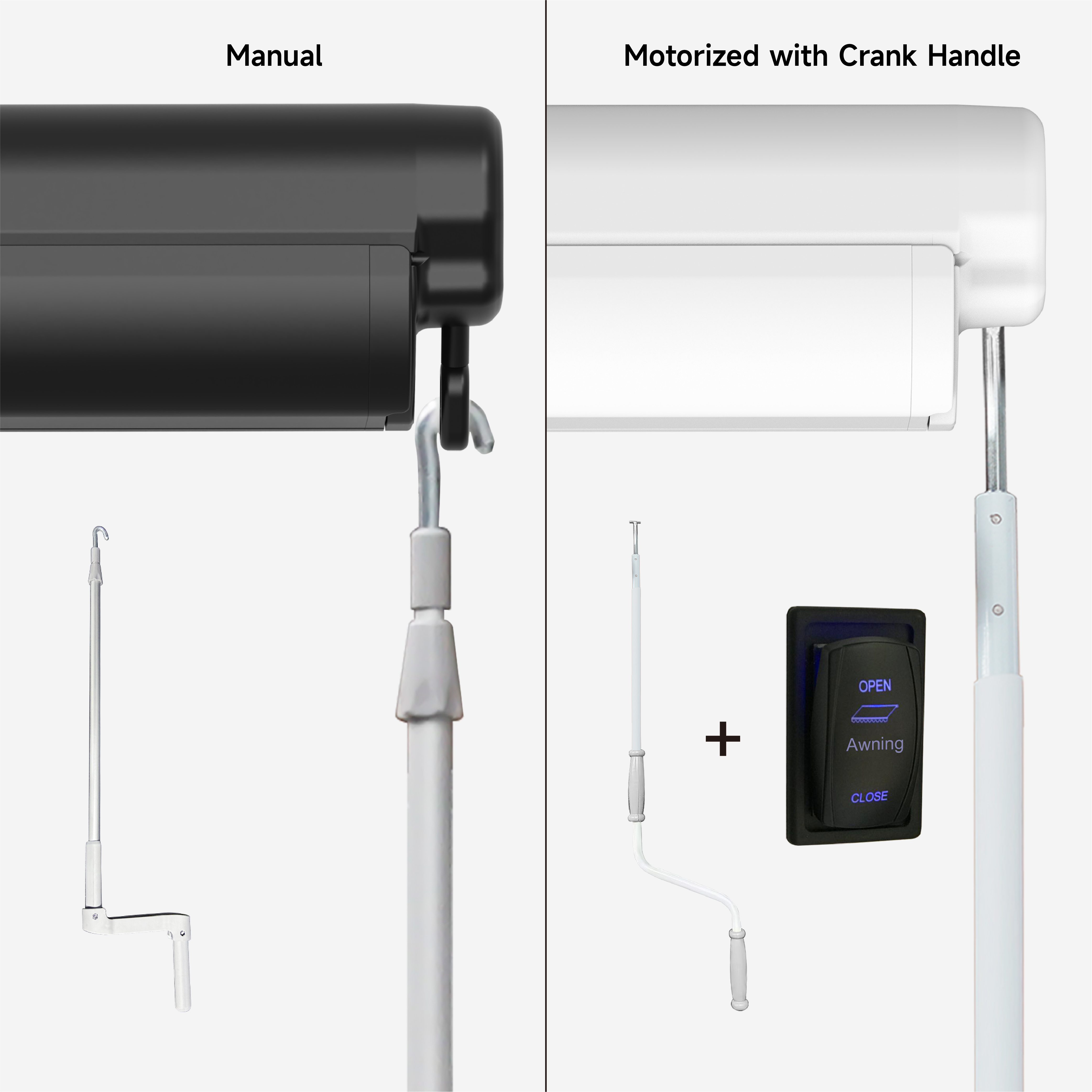

Yes. The motorized version includes a crank handle backup port. If the motor fails or the battery is flat while the awning is extended, insert the crank handle and close the awning manually. This backup is standard on all Awnlux motorized cassette awning models.

Q4: What is the difference between W5800 and W5900?

Both share similar design, the same control system options (manual or motorized with crank backup), and the same maximum size (600cm wide, 250cm extension). The key difference is installation: W5800 mounts on the roof edge and suits vans where the side wall is not flat or is obstructed. W5900 is a wall-mount awning for large Class A motorhomes and wide caravans with flat vertical side walls. If your vehicle has a usable flat side wall, W5900 is the correct choice; if not, W5800 is needed.

Q5: What wind speed should I retract the W5800?

Retract the W5800 when sustained wind speed reaches Class 6 (approximately 39 km/h or above), or when gusts become unpredictable. The W5800 frame is designed for Class 5 conditions (29–38 km/h sustained). In practice, retract any awning before leaving camp unattended or when weather is developing. The motorized version allows fast one-button retraction; the manual version uses a crank handle.

Q6: Is the W5800 certified for European market sales?

Yes. The W5800 holds EN 13561:2015 certification (Certificate No. M.2026.206.C0134616, issued by UDEM International Certification, valid to February 2031) and CE marking under the 2006/42/EC Machinery Directive (Certificate No. M.2026.206.C0134729, valid to February 2031). These cover both manual and motorized versions. Certificate documentation is available in the standard OEM document package.

Q8: Can the support arms be configured to fix against the vehicle body?

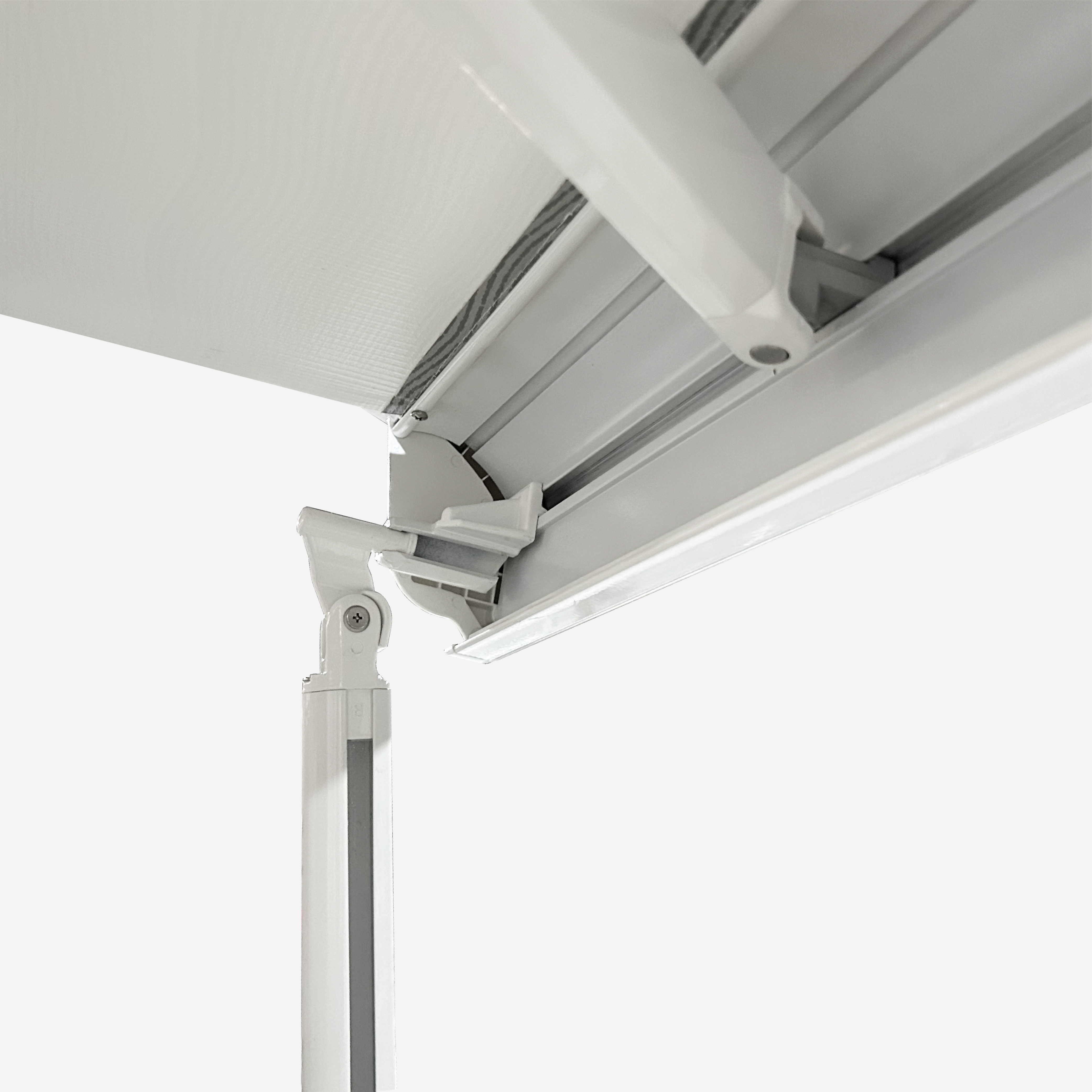

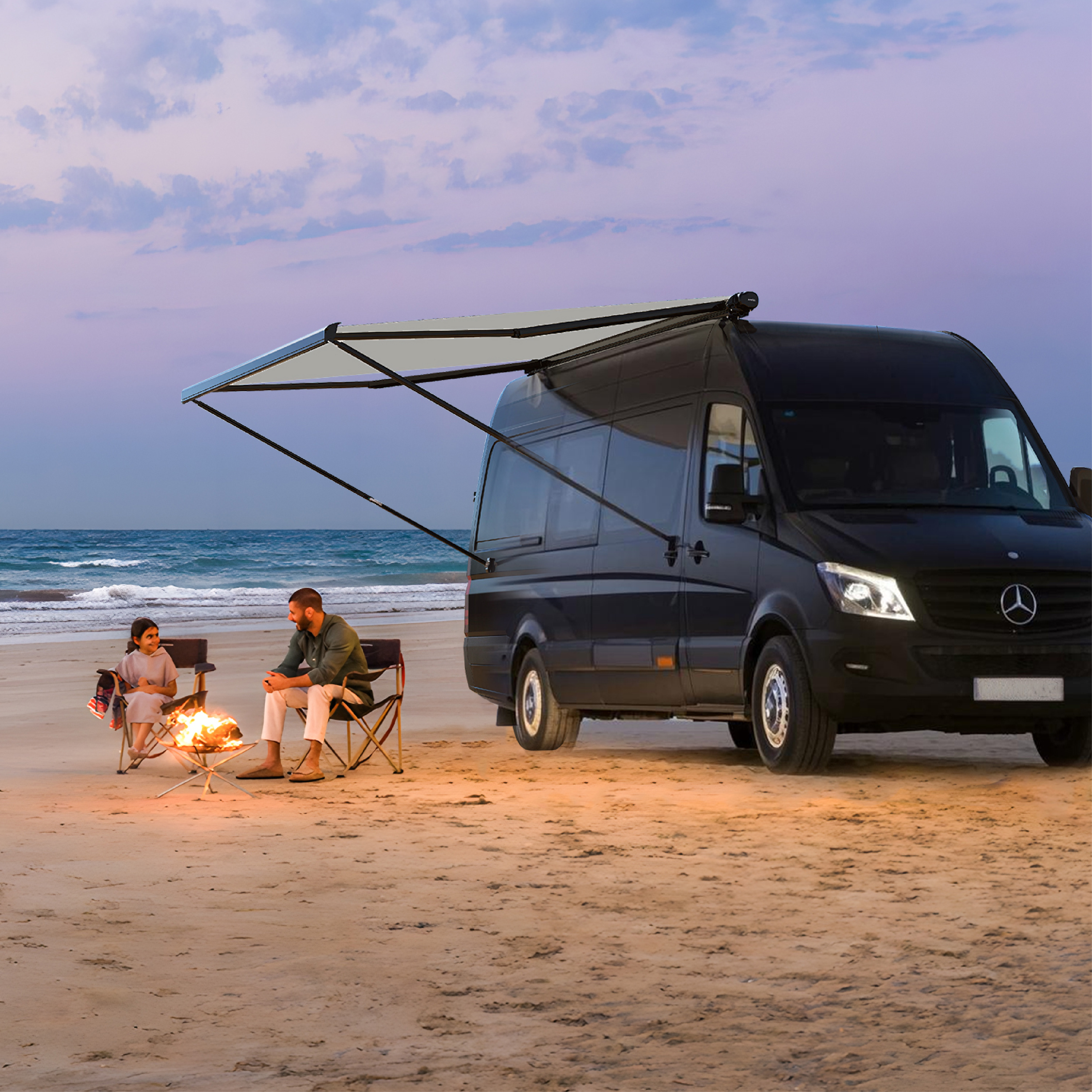

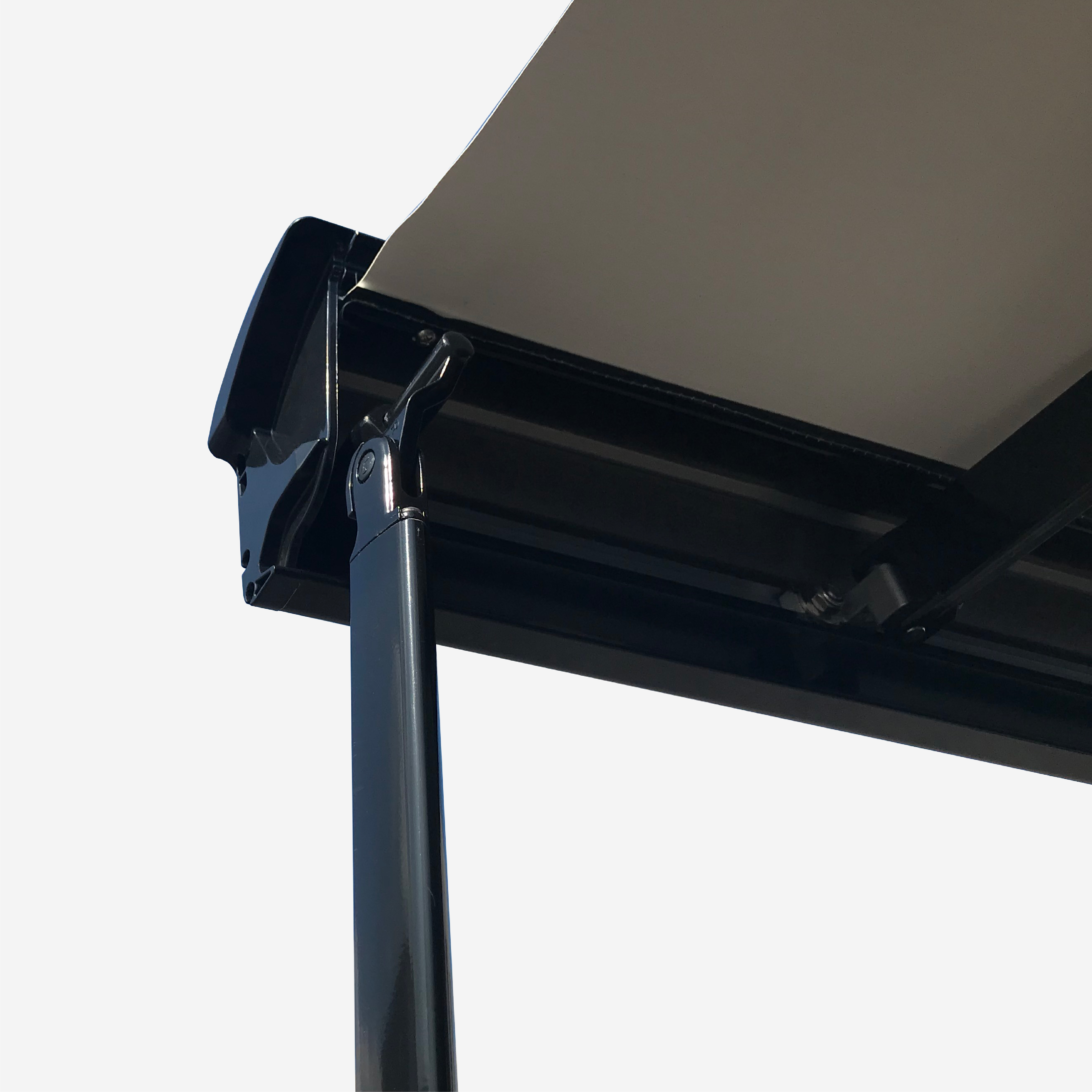

Yes. The W5800 support legs have two configurations: fixed against the vehicle body for a compact and taut setup, or extended to the ground for a larger covered area and better stability. Both use the same arm hardware. When fixing arms against the body, set a slight outward angle on the awning to allow rainwater to run off the fabric rather than pool at the centre.
