Model : WGB 61001
Frame Material : Steel,Aluminum Alloy
Frame Color : Black
Height : 340-735(±5)mm
Control System ：Pneumatic lift table leg
Static load capacity : 80kg (min. height).40kg (other heights)
Dynamic load capacity : 10kg (incl. tabletop)

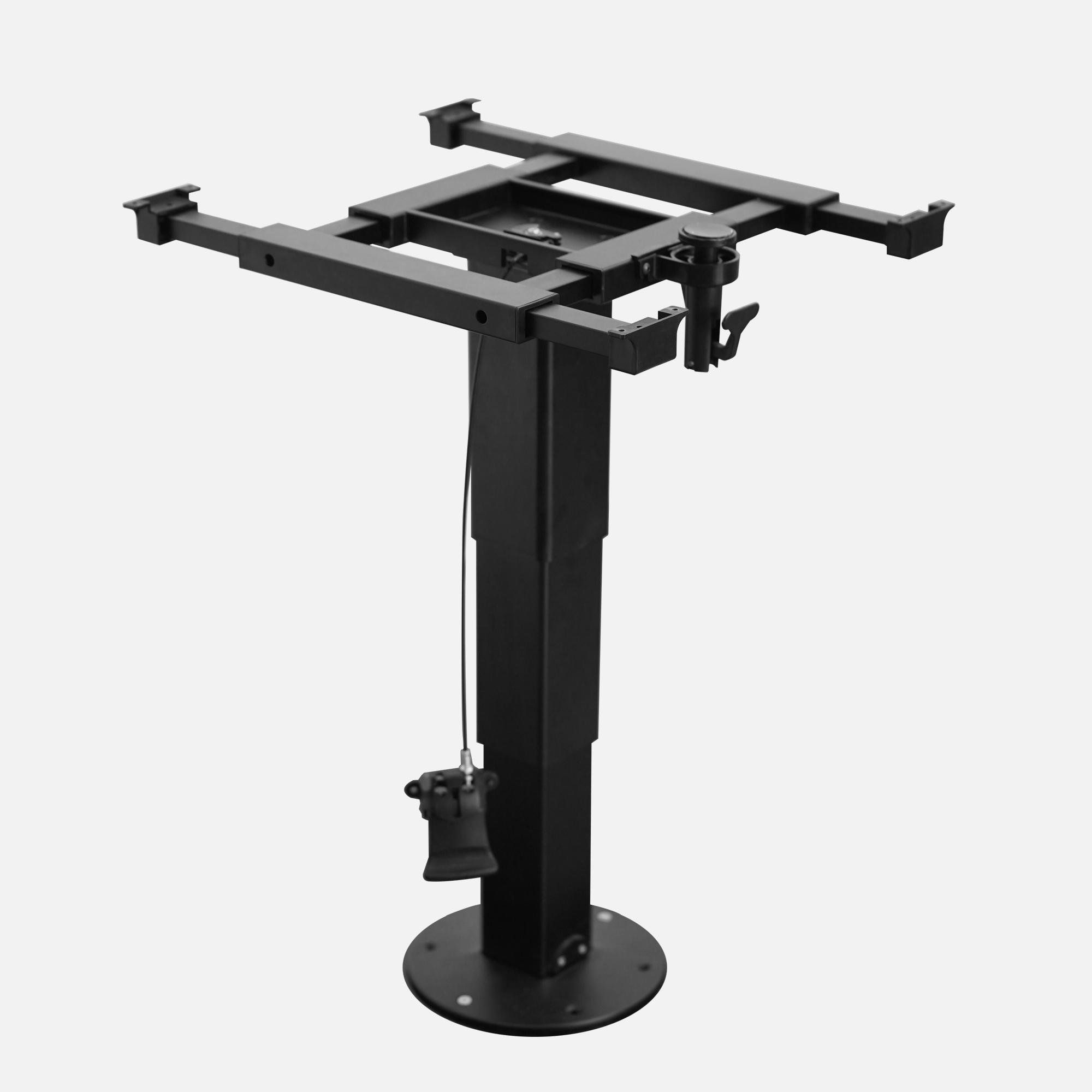

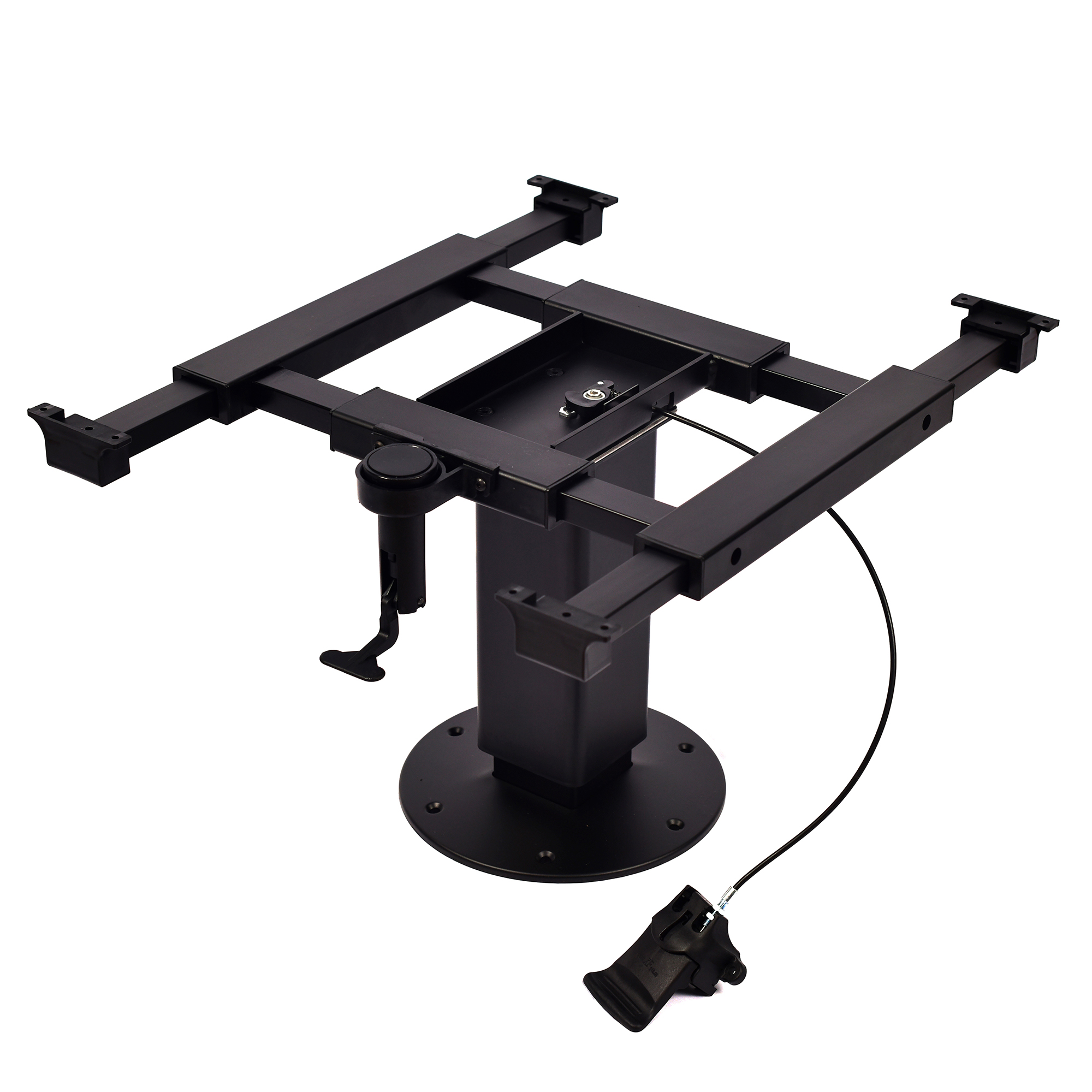

Pneumatic Lift Table Leg
The WGB 61001 pneumatic lift table leg is designed to offer flexible and comfortable space solutions for RVs, camper vans, trailers, and mobile workstations. With adjustable height and sleek design, it brings both convenience and modern aesthetics to your mobile lifestyle.
Crafted from high-quality steel and aluminum alloy, this table leg delivers strong stability and long-lasting durability. The advanced pneumatic control system allows smooth and quiet height adjustment between 340mm and 735mm (±5mm), helping you easily switch between dining, working, or leisure modes.

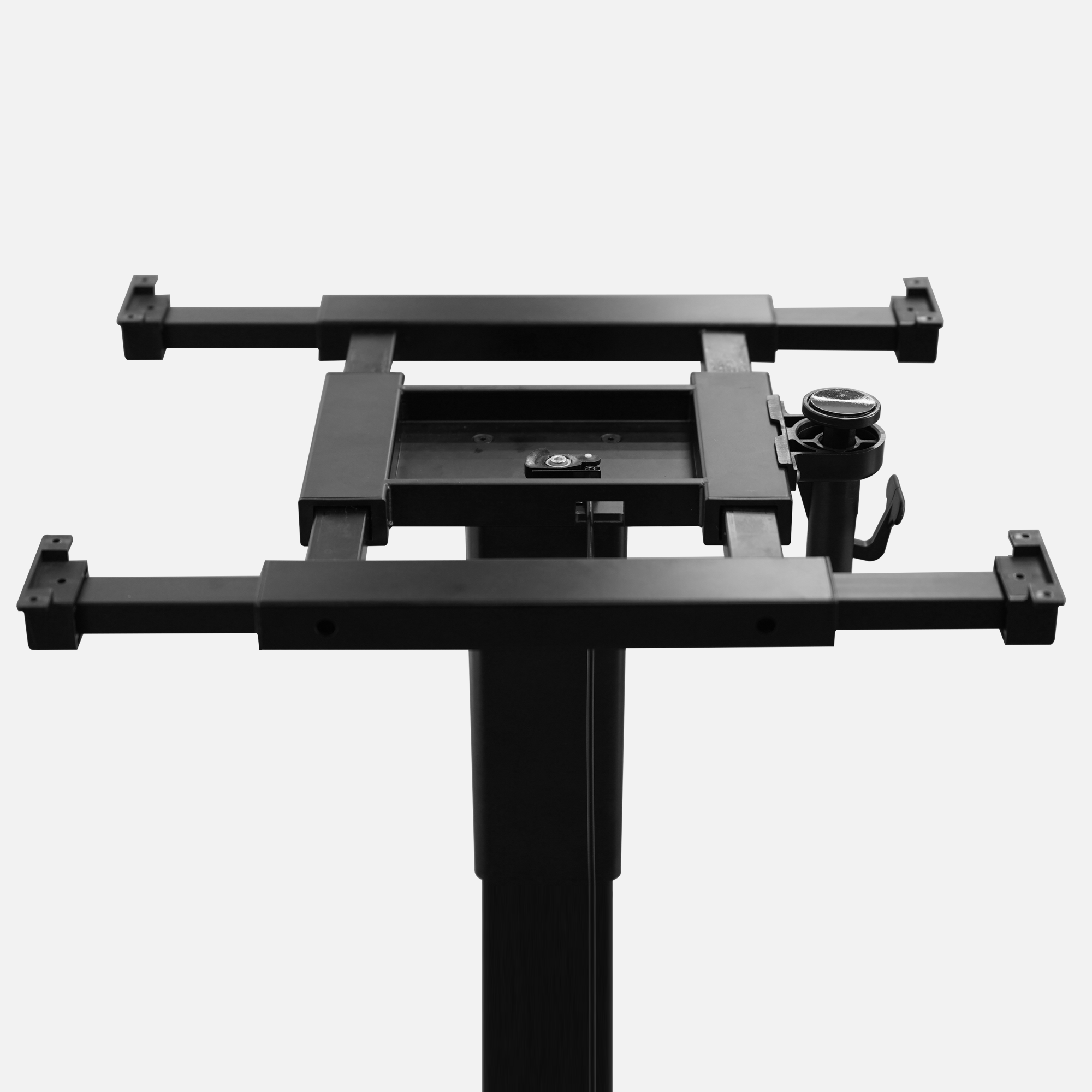

In addition to vertical lift, the WGB 61001 features a four-way sliding tabletop system—forward, backward, left, and right—allowing you to easily adjust the position of the tabletop to fit different layouts and seating arrangements. A secure locking mechanism ensures stable positioning even while on the move.
Easy to install, effortless to operate, and built for versatile use—WGB 61001 pneumatic lift leg brings smart function and comfort to your journey.
🟨 Manual pneumatic control, smooth and quiet lifting with simple operation
🟨 Adjustable height range from 340mm to 735mm (±5mm), suitable for multiple usage scenarios
🟨 Four-way sliding tabletop—forward, backward, left, and right—for flexible positioning
🟨 Durable steel and aluminum alloy frame ensures stability and long service life

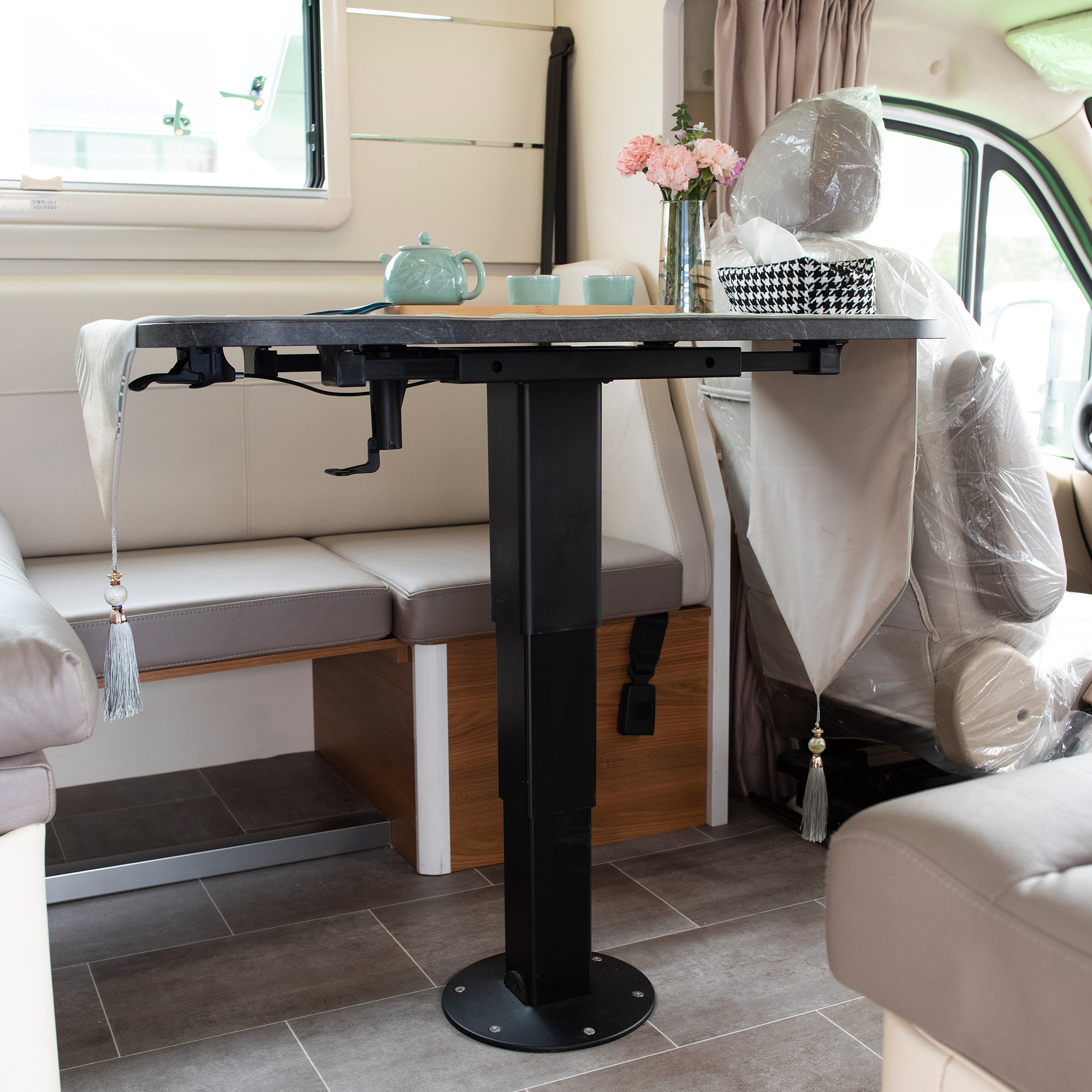

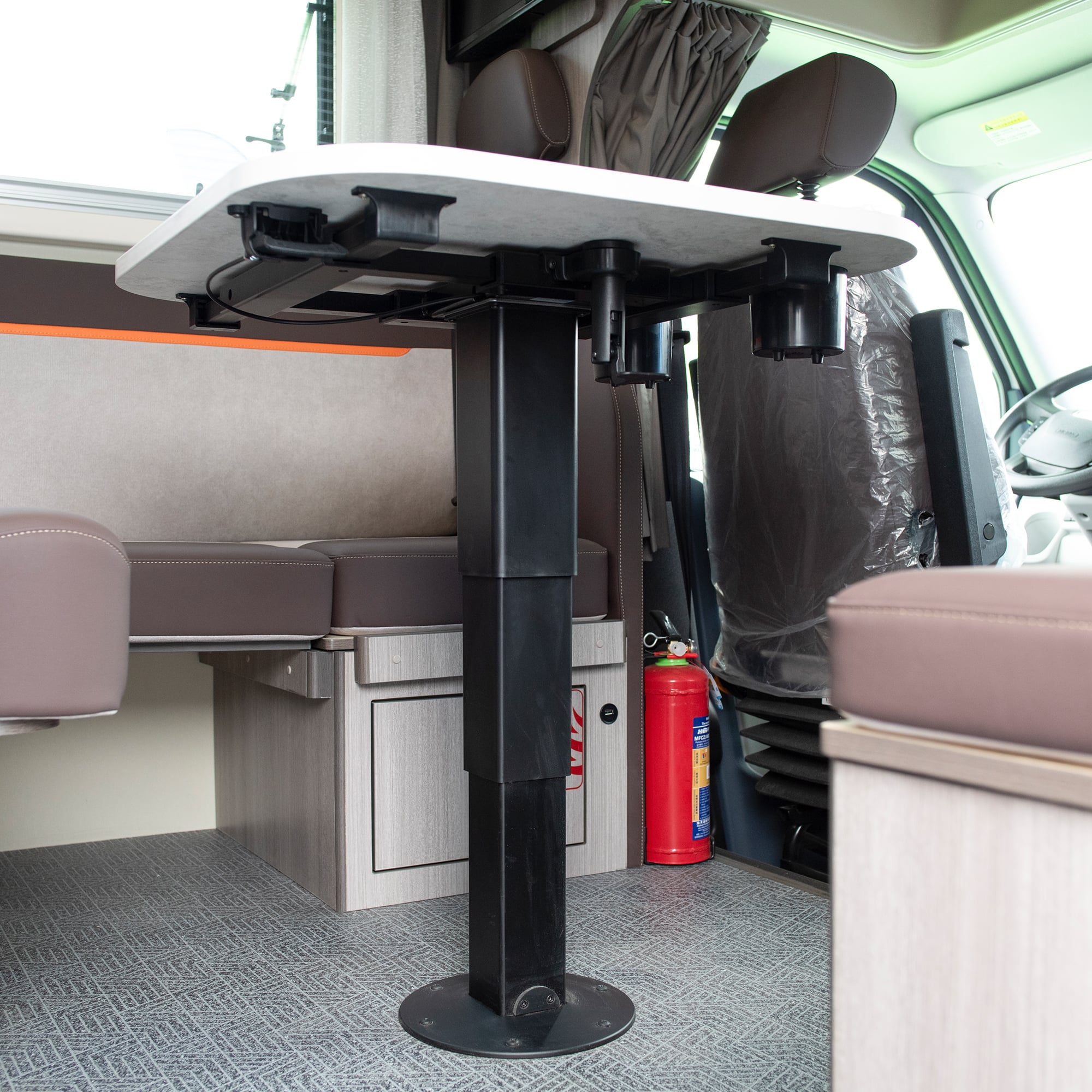

🟨 Compact and space-saving design ideal for RVs, trailers, camper vans, and boats

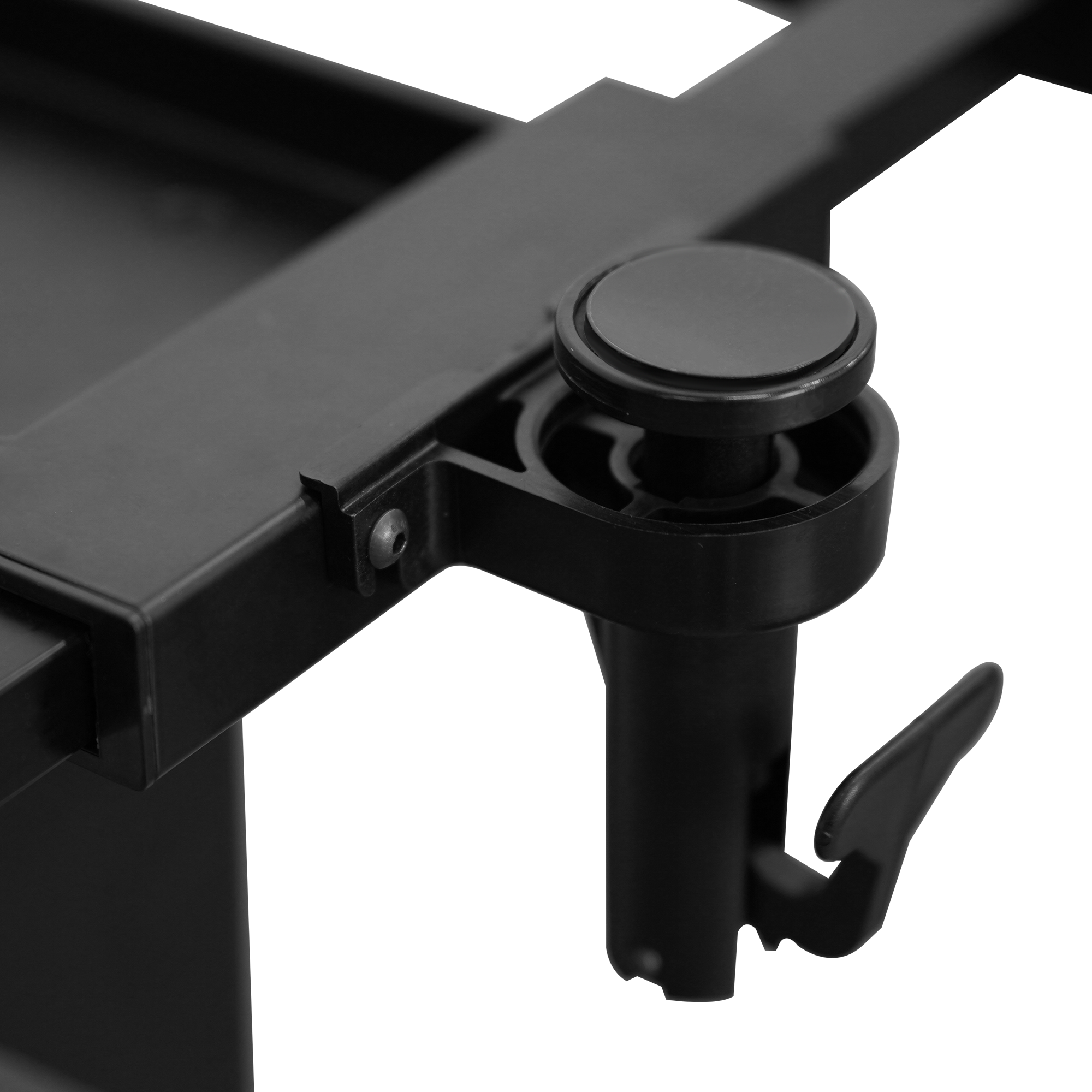

🟨 Secure locking mechanism keeps tabletop stable during use and travel
🟨 Static load capacity up to 80kg (min. height), dynamic load up to 10kg (including tabletop)

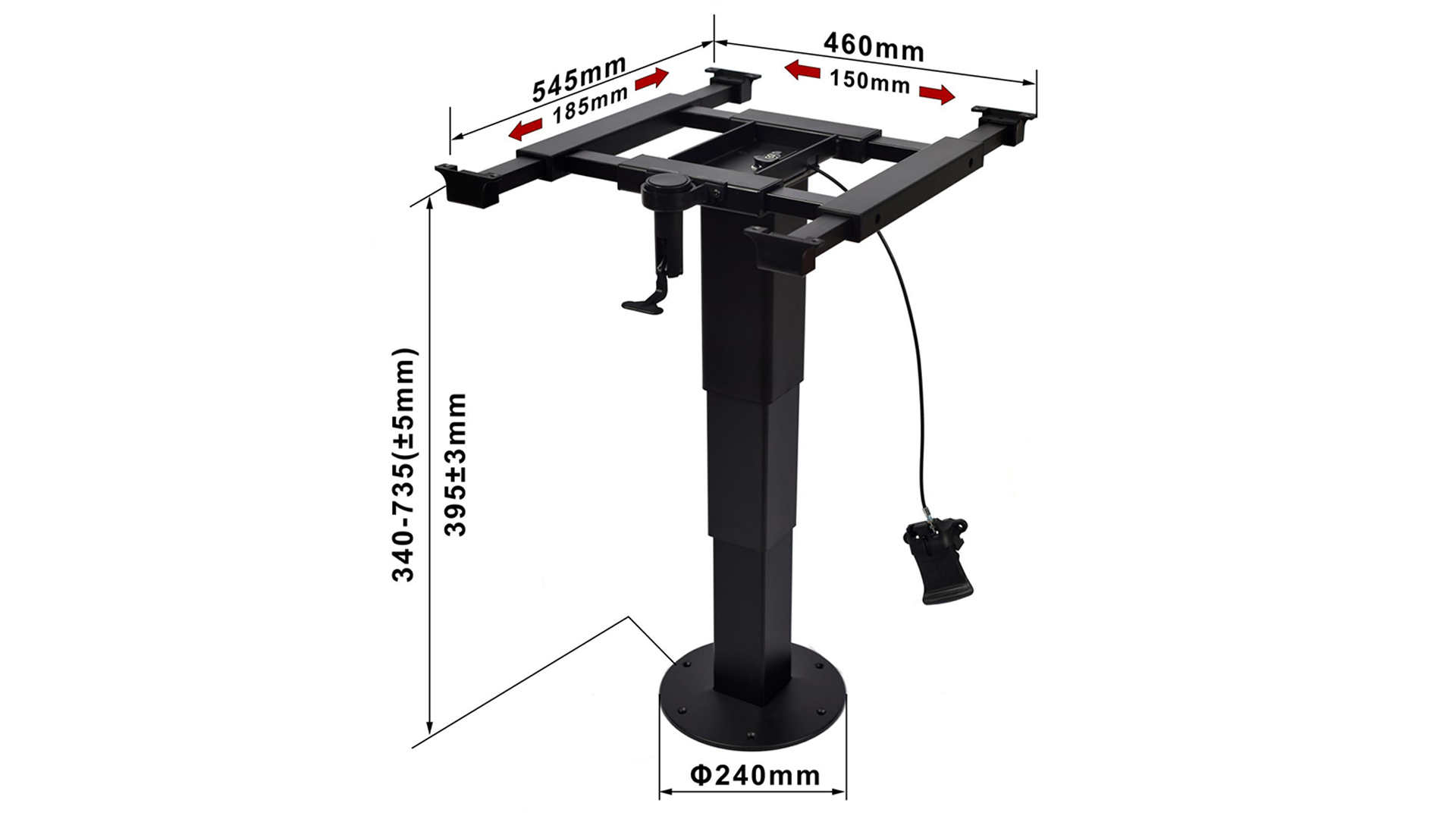

X-direction 185mm
Y-direction 150mm
Awnlux is an ISO 9001 certified factory that meets the highest international quality standards. All our products are fully compliant with CE, RoHS, and TÜV Rheinland. We have a powerful R&D team and hold Global Invention Patents in the USA, Australia, Germany, and Europe for our W5300T, W5520, W5810, and Smart Electric Curtain series. With dozens of utility patents, we provide original, high-performance, and legally protected shading solutions to our partners worldwide.
Awnlux is a Shanghai based manufacturer with 16 years of experience in shading solutions, specializing in RV awnings, camper awnings and vehicle mounted shading systems. With strong technical expertise and advanced manufacturing capabilities, Awnlux focuses on continuous product innovation, including electric awnings, manual awnings, and complete shading system solutions.
