Supporting a Polish RV Distributor with W5500N Awnings, Custom Branding and Consolidated Shipping

A Polish RV equipment distributor worked with Awnlux on an order combining W5500N manual cassette awnings, branded sun blocker materials and replacement components. The project required coordination across product supply, printed materials, spare parts matching and pallet packing.

1. Project Overview & Order Growth Timeline

Order Evolution: Step-by-Step Partnership Growth

2. Client Requirements & Sourcing Priorities

The distributor required a seasonal stock replenishment tailored to the Central European caravan and campervan market, with four specific operational requirements:

Balanced Model Mix for Mid-Sized & Extended RVs:

High demand for compact Class B vans and medium caravans required 70 units of 2.5m awnings (250 × 200 cm);

Demand for longer vehicles required 20 units of 3.0m awnings (300 × 250 cm).

Turnkey Private-Label Marketing Material:

The distributor wanted their own branding and local contact details included directly inside the 20 Sun Blocker retail carry bags;

Sourcing custom print packaging locally in Poland for a short 20-piece run was cost-prohibitive.

Consolidated Logistics to Avoid Inflated Freight Volumes:

Because awnings are long, rigid units (2.5m to 3.0m exterior cartons), mixing shorter and longer boxes on pallets often creates uneven top tiers. European LCL freight forwarders measure billable volume by the pallet’s outermost peak dimensions, inflating freight charges on dead space.

Resolution of an Unpaired Spare Arm from Past Transit Damage:

The client had a usable 2.0m right-hand awning arm in their warehouse from an earlier transit damage incident. They needed a single 2.0m left-hand arm to pair with it, along with a separate 2.5m arm pair, to complete the unit without incurring separate international air-freight fees.

Mounting Bracket Adaptability Across Diverse European Vehicle Walls:

The distributor's customer base covers both flat-walled travel trailers (caravans) and panel-van conversions (such as Fiat Ducato, Peugeot Boxer, and Mercedes-Benz Sprinter). They needed clarity on mounting bracket fitment and alignment solutions for slightly curved vehicle side panels to ensure stress-free, plumb installation.

3. Awnlux Solution & Engineering Support

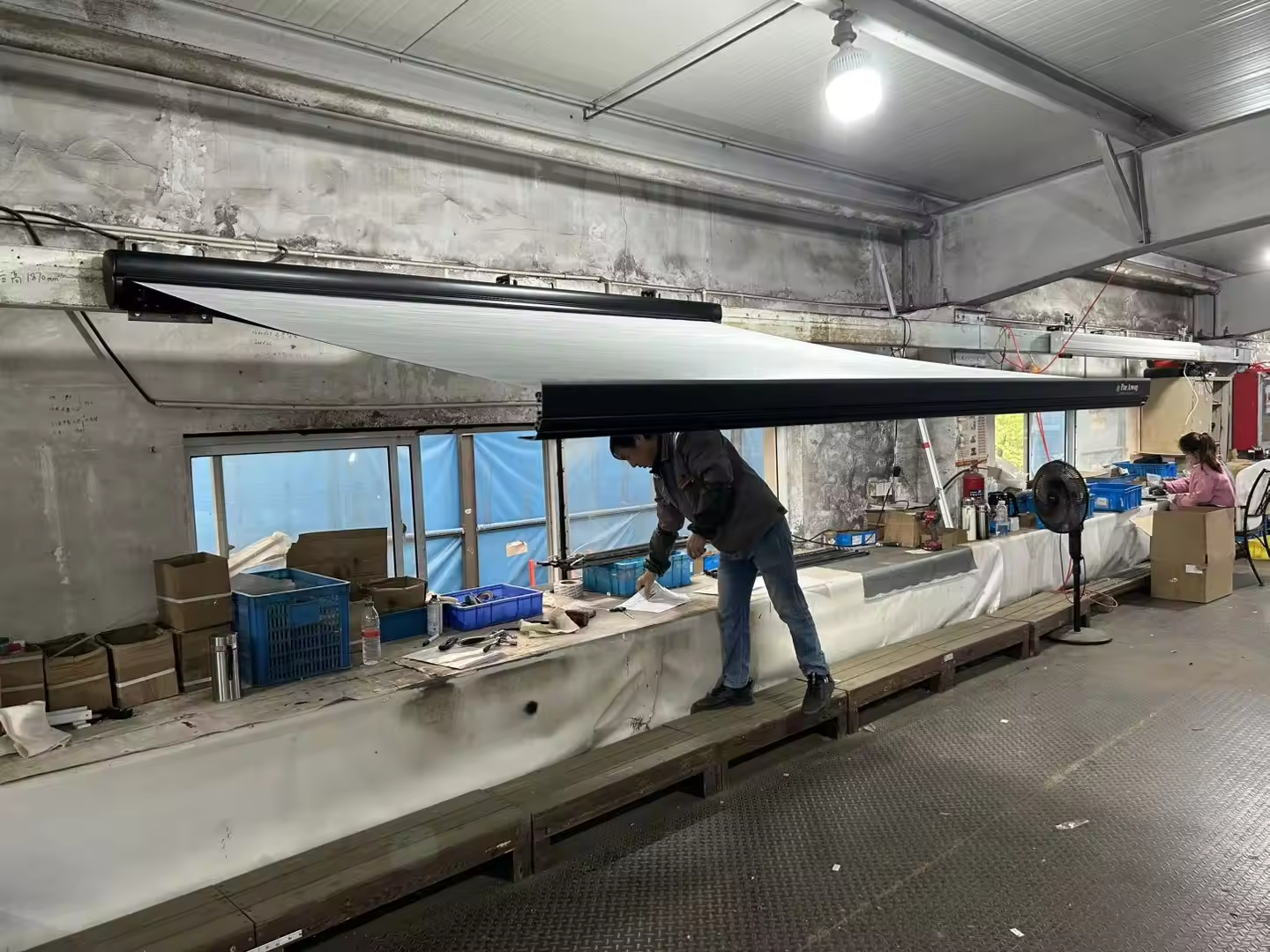

3.1 Product Configuration: W5500N Manual Full-Cassette Awning

Awnlux configured the order around the W5500N series:

Full Cassette Protection: When retracted, the extruded aluminum alloy shell completely encloses the roller tube, fabric, and internal arm mechanism, shielding all moving parts from dirt, UV exposure, and weather during road transit.

Manual Crank Control: Dependable, gear-driven manual operation via detachable hand crank, eliminating electrical installation overhead and field failure points.

Size Verification:

70 units × W5500N (250 × 200 cm): 2.0m extension depth for compact footprints.

20 units × W5500N (300 × 250 cm): 2.5m extension depth for larger patio coverage.

Engineering Note: Both sizes satisfy the core design rule where awning width exceeds extension by at least 50 cm, ensuring the internal folding arms fold completely flat inside the shell without colliding.

3.2 Private-Label Leaflet Insertion (Bespoke OEM Support)

For the 20 units of 250 cm Sun Blockers:

The client selected durable zippered carry bags over basic plastic polybags.

Awnlux provided a vector layout template for the interior leaflet. The client provided their company logo and text in vector PDF.

Commercial Arrangement for This Project: Awnlux absorbed the plate-making and printing costs for this 20-piece batch, handling file verification and print insertion prior to cartoning.

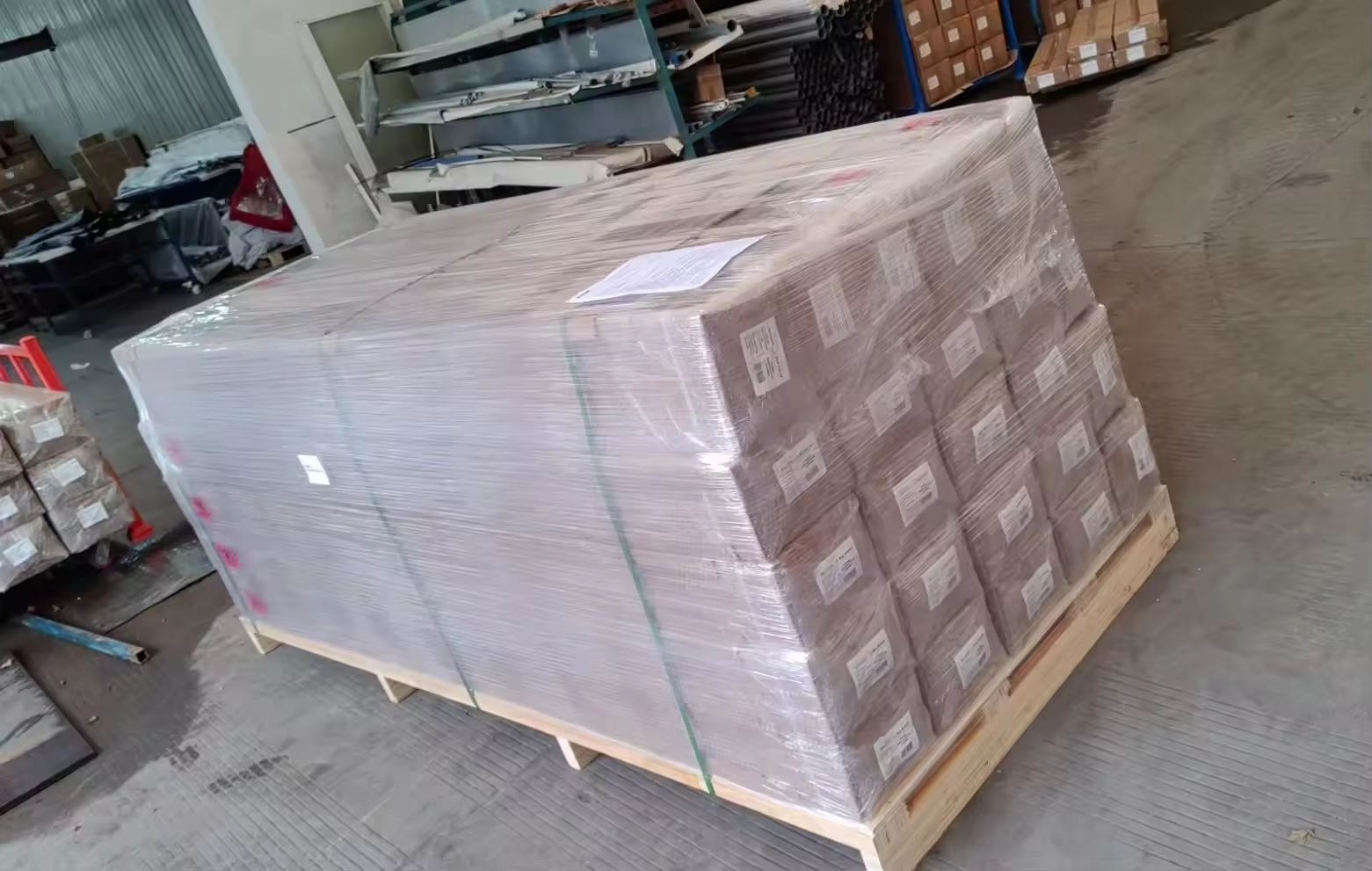

3.3 Optimized Pallet Packing for Mixed-Length Cargo

To prevent forwarders from assessing surcharge volume on uneven pallet layers:

Dimension Coordination: The client requested exact master carton dimensions before finalizing the order. Awnlux provided specifications for both 5-piece (50×42×28 cm50×42×28 cm, 12 kg) and 10-piece (50×42×47 cm50×42×47 cm, 23 kg) packing formats to allow the client to confirm container calculations.

Void Space Utilization: Cartons for the 20 Sun Blockers were designated to nest into the longitudinal space created where the shorter 2.5m awnings sit adjacent to 3.0m cartons.

Flush Arm Placement: The ordered spare 2.5m arm pair and single 2.0m left arm are packed flush along the interior pallet base rather than stacked on top, ensuring the pallet top remains flat and rectangular.

3.4 Hardware Matching & Complimentary Support Bundle

To resolve the client's unmatched right arm from previous shipping damage:

Awnlux identified and supplied the exact matching 2.0m left-hand arm, consolidating it directly into the sea cargo shipment.

For additional after-sales security, Awnlux provided a complimentary hardware backup kit for this order:

1 complete set of left & right end caps;

2 pairs of vertical support legs (1 pair for 3.0m, 1 pair for 2.5m);

1 hand crank handle.

3.5 Mounting Bracket Engineering & Vehicle Adaptability

To ensure universal fitment across the client's diverse customer installations in Poland:

Structural Bracket Allocation:

Standardized heavy-duty extruded aluminum wall-mount brackets: 2 brackets per 2.5m unit (positioned near arm pivot points) and 3 brackets per 3.0m unit (including a central stabilizing bracket to damp vibrations on longer road journeys).

Curved-Wall & Alignment Guidance:

European van conversions (e.g., Ducato, Sprinter) feature slight convex contours on upper side panels. Awnlux provided technical drawings and alignment spacer recommendations to maintain a strictly vertical (plumb) bracket plane, eliminating mechanical twisting stress on the cassette during extension and retraction.

European Replacement Compatibility:

The bracket profile and hole patterns offer straightforward compatibility with legacy European wall-mount installations (such as Fiamma F45s and Dometic wall units), enabling end-users to retrofit Awnlux awnings without unnecessary exploratory drilling on vehicle sidewalls.

4. Confirmed Project Deliverables

5. Summary & Operational Takeaways

This ongoing partnership illustrates how Awnlux supports overseas distributors through low-risk phased scaling, flexible order management, and practical logistics coordination:

Step-by-Step Scaling Model (Low-Risk Market Entry): Rather than forcing massive upfront container commitments, Awnlux welcomed the client's initial 20-unit trial in late 2025. Once local customer feedback and installation quality were proven in Poland, the client naturally scaled up—progressing from 20 to 25 units, and reaching 90 units on this third order (a 4.5× volume increase).

Flexibility on Model Ratios: When the client adjusted their order mix from 80/10 to 70/20 units to match their seasonal distribution forecast, production scheduling adapted immediately.

Pragmatic Branding Support: Absorbing leaflet printing costs on smaller accessory batches (20 pieces) removes barriers for distributors who want professional, private-label packaging without high MOQs.

Logistics Alignment: Sharing carton dimensions early and designing pallet configurations around mixed product lengths protects distributors against avoidable freight volume surcharges.

Responsible After-Sales Coordination: Providing matching replacement arms and bundling essential hardware directly into repeat ocean shipments resolves legacy inventory issues without expensive ad-hoc transport.
