A Deep Dive into the Awnlux W5700 12V Smart Awning System
Introduction
As RV travel becomes increasingly focused on comfort and convenience, electric RV awnings have become a standard feature on modern motorhomes, travel trailers, and caravans. Today's RV owners expect more than simple sun protection—they want effortless operation, reliable performance, and a system that can handle changing outdoor conditions.
Leading brands such as Fiamma, Dometic, Lippert Solera, Carefree of Colorado, and Thule have all introduced electric awning systems, making powered awnings one of the fastest-growing upgrades in the RV industry.
But what actually happens when you press the extend button? How does the motor work, and what makes one electric awning more reliable than another?
Using the Awnlux W5700 12V Smart RV Awning as an example, this article explains how electric RV awning motors operate, the engineering behind smooth and reliable performance, and the key features to consider when choosing a modern awning system.
Why Electric RV Awnings Have Become the Industry Standard
Modern RV camping is no longer just about traveling—it's about creating a comfortable outdoor living space. As a result, electric RV awnings have gradually replaced manual models on many new RVs thanks to their ease of use, improved safety, and cleaner appearance.
The Evolution of Electric RV Awnings
The popularity of electric awnings reflects the changing needs of RV owners around the world.
In North America, larger motorhomes and fifth wheels have accelerated the move from manual awnings to 12V electric systems. With the push of a button, users can extend or retract the awning quickly without physical effort, making everyday camping far more convenient.
In Europe, caravan manufacturers have focused on lightweight construction, slim cassette designs, and integrated features such as LED lighting to improve both functionality and aesthetics.
Although market preferences differ, the direction is the same—electric awnings are becoming the preferred solution for modern RVs because they offer greater convenience, smarter operation, and better overall user experience.
How Does an Electric RV Awning Motor Work?

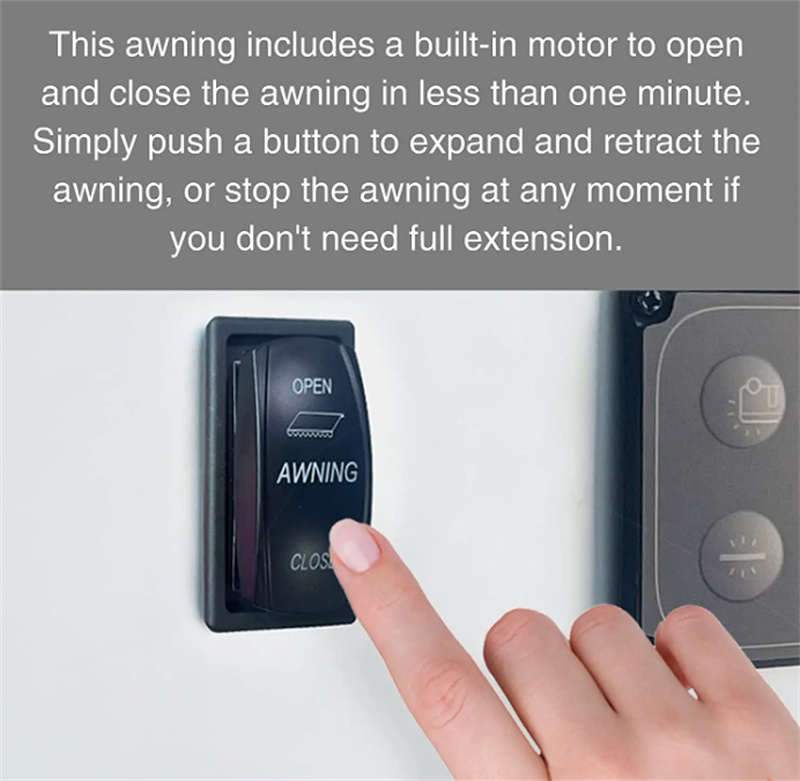

Inside the awning tube, there is a 12V DC tubular motor. This motor is integrated directly inside the roller tube to power the extension and retraction of the awning. When the user presses the control switch, power from the RV's 12V battery is delivered to this tubular motor through a protected electrical circuit. Reversing the current changes the motor's rotation, allowing the awning to smoothly extend or retract. Although different manufacturers use different control systems, the operating principle remains the same: delivering stable torque for reliable everyday operation.

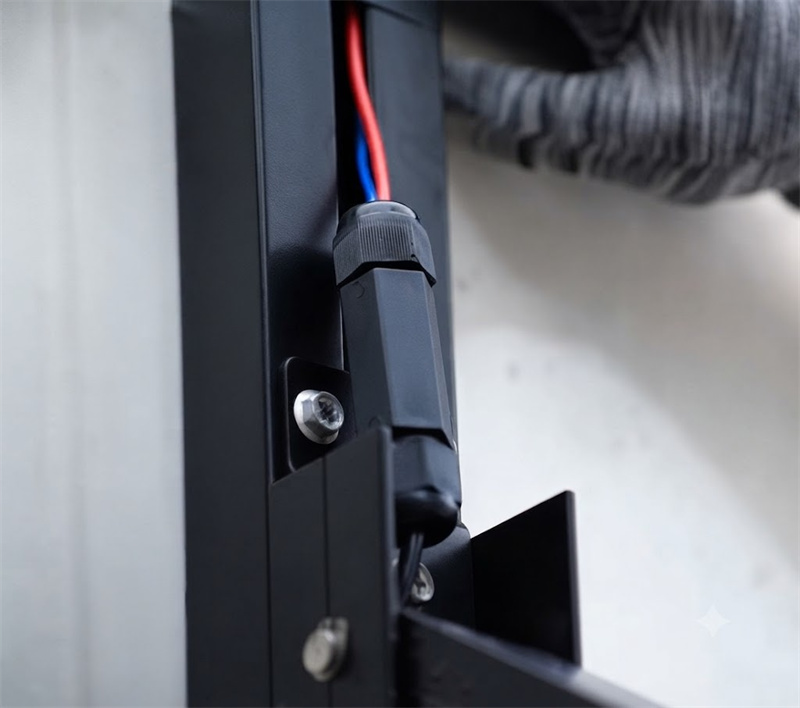

The Awnlux W5700 enhances this design with a concealed wiring system. Instead of running cables along the outside of the awning arms, the wiring is routed internally to protect it from UV exposure, rain, dust, and accidental damage while creating a cleaner appearance.
Electrical connections are also housed inside a sealed protective enclosure, reducing the risk of moisture intrusion and corrosion. Combined with organized cable routing and durable components, the W5700 provides dependable performance while maintaining the premium look expected from a modern RV awning.
Engineering Features Behind the Awnlux W5700
The Awnlux W5700 is built to deliver reliable performance, intelligent operation, and long service life. Designed for frequent outdoor use, it combines durable engineering with user-friendly features that improve both convenience and safety.
Two key technologies make the W5700 stand out: an IP67-rated waterproof motor and an emergency manual override system. Together, they help ensure dependable operation in changing weather conditions while providing a backup solution when power is unavailable.
IP67 Waterproof Motor Design
The W5700 is powered by a high-performance motor with an IP67 waterproof rating, offering complete protection against dust and resistance to temporary water immersion. This level of protection is essential for an RV awning that regularly faces rain, humidity, sand, and changing outdoor environments.
A multi-layer sealing design protects the motor and transmission from moisture and contaminants, reducing the risk of corrosion, electrical failure, and premature wear. As a result, the awning continues to operate smoothly in a variety of weather conditions, from coastal camping trips to dusty off-road adventures.
By improving durability and reducing maintenance needs, the IP67 motor helps extend the overall service life of the awning system.
Emergency Manual Override
Although electric awnings are designed for reliable daily use, unexpected situations such as a discharged battery or power failure can occasionally occur.

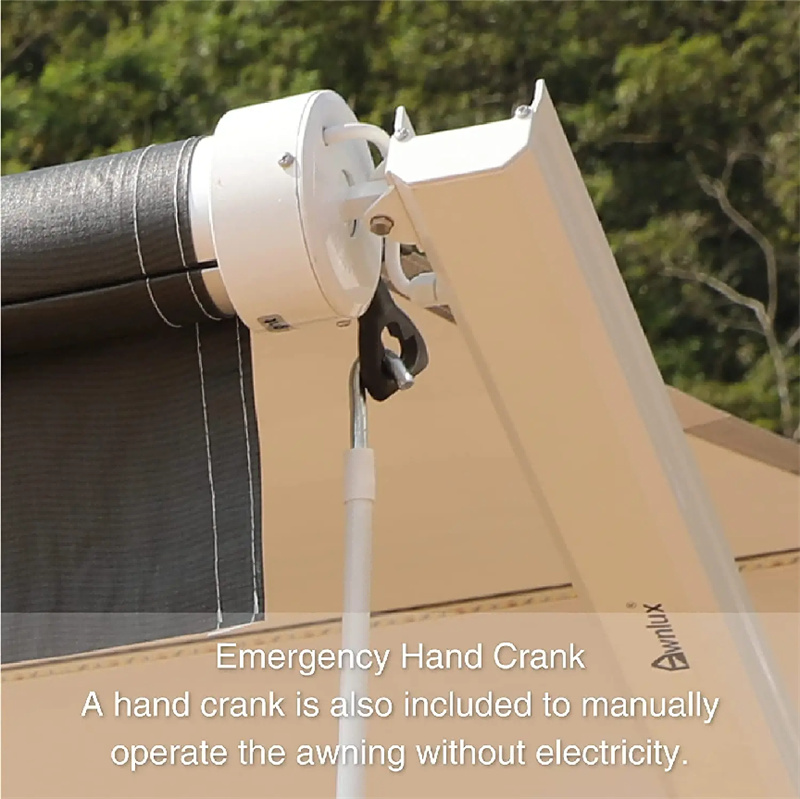

To ensure the awning can always be operated, the W5700 includes an emergency manual override. Using the supplied hand crank, users can manually extend or retract the awning without electrical power.
This mechanical backup allows the awning to be safely closed before driving or during sudden weather changes, helping prevent unnecessary damage. By combining electric convenience with manual reliability, the W5700 provides greater peace of mind wherever your travels take you.
Buying Guide & Frequently Asked Questions
Choosing the right electric RV awning involves more than selecting the correct size. Understanding basic maintenance, installation requirements, and motor operation will help maximize reliability and ensure years of dependable performance.
Below are some common maintenance tips and frequently asked questions about the Awnlux W5700.
Common RV Awning Motor Problems and How to Prevent Them
Even high-quality awning motors require proper care to achieve their full lifespan. Here are three common issues and simple ways to prevent them.
1. Motor Stops Working
Possible Causes
Loose or damaged electrical connections
Low RV battery voltage
Blown fuse or faulty wiring
Motor overload protection activated
Prevention Tips
Inspect wiring and connectors regularly.
Keep the RV battery fully charged.
Operate the awning with the recommended 12V power supply.
Check the fuse if the motor suddenly stops.
2. Moisture-Related Problems
Possible Causes
Long-term exposure to moisture
Water entering damaged seals
Aging waterproof components
Prevention Tips
Choose an awning with an IP67-rated motor.
Store the awning dry whenever possible.
Inspect seals during routine maintenance.
Avoid spraying high-pressure water directly at the motor.
3. Wind Damage
Possible Causes
Leaving the awning open during strong winds
Sudden wind gusts placing stress on the awning
Forgetting to retract the awning before leaving the campsite
Prevention Tips
Retract the awning whenever strong winds are expected.
Use the optional Smart Wind Sensor for automatic retraction.
Always close the awning before driving away or leaving the campsite.
Frequently Asked Questions (FAQ)
Q1: How do I choose the correct W5700 size for my RV?
A: Measure the available mounting space on your RV rather than the overall vehicle length. Make sure there is enough clearance for installation brackets, doors, and windows.
Q2: What size awning should I choose?
A: Choose the largest awning that fits your available installation space without blocking doors, windows, storage compartments, or exterior accessories.
Q3: Is the W5700 suitable for daily use?
A: Yes. Its 12V electric drive system is designed for frequent operation, making it ideal for weekend camping, full-time RV travel, and long-term outdoor use.
Q4: Can I operate the awning if my RV loses power?
A: Yes. The emergency manual override allows you to extend or retract the awning using the supplied hand crank whenever electrical power is unavailable.
Conclusion: Engineering Creates a Better RV Experience
Electric RV awnings have become an essential part of modern outdoor living, offering greater convenience, comfort, and ease of use than traditional manual systems. However, a high-quality awning is defined by more than just one-touch operation. Reliable performance depends on the combination of a dependable motor, intelligent design, weather resistance, and built-in safety features.
As we've explored in this article, every component of an electric awning contributes to its overall performance. From the 12V DC motor and concealed wiring system to the IP67 waterproof protection and emergency manual override, each feature is designed to improve durability, safety, and the overall user experience.
The Awnlux W5700 12V Smart RV Awning brings these engineering principles together in one complete solution. Built for reliable daily use and demanding outdoor conditions, it offers RV owners a practical balance of convenience, long-term durability, and peace of mind.
Whether you're upgrading an existing awning or equipping a new caravan, camper van, or motorhome, understanding how an electric RV awning works will help you choose a product that delivers lasting performance for every adventure.
Learn More About the Awnlux W5700
If you're looking for an electric RV awning that combines smart operation, durable engineering, and dependable all-weather performance, the Awnlux W5700 is an excellent choice. Visit our product page to explore available sizes, technical specifications, installation information, and the latest promotions.
Product Page:
Whether you're preparing for a weekend getaway or planning long-term RV adventures, the Awnlux W5700 is engineered to provide a smarter, safer, and more enjoyable outdoor living experience wherever the road takes you.
