Full Cassette RV Awning Application and Maintenance

As RV travel and outdoor camping culture grow rapidly, awning have evolved from optional accessories into essential components for enhancing comfort during travel. Among various types , the cassette RV awning has become a popular choice for many RV users due to its effective protection,  higher appeal, and extended service life.

1.  What Is a Full Cassette RV Awning?

A full cassette RV awning is a type of retractable awning where both the fabric and structural components are completely enclosed within an aluminum casing when retracted.

The key parts:

• A fully enclosed aluminum casing
• Retractable fabric and support pole
• Manual or electric control system

When the awning is retracted, everything stays safely enclosed within the casing, keeping out rain, UV rays, dust, and bugs. That means less damage over time and a longer-lasting awning.

Comparison Between Full Cassette RV Awning and Roll Out RV Awning

1.  )Structural Differences

Item	Full Cassette RV Awning	Roll Out RV Awning
Casing Design	The fabric and support pole are fully enclosed within the casing	Fabric is partially or fully exposed
Appearance When Closed	Streamlined design that integrates with the vehicle body	Edges of the fabric are visible; structure is more pronounced
Enclosure Performance	Well-sealed, offers protection against dust and rain	Open design, tends to accumulate dust and water.



2.  ) Performance and Durability

Item	Full Cassette RV Awning	Roll Out RV Awning
Weather Resistance	Extremely durable,  suitable for rainy, dusty, and high-UV, offering  full protection	Moderate; better for dry, mild conditions
Lifespan	Typically 3–5 years	Typically 5–7 years
Wind Resistance	Moderate resistance to wind	Generally stronger wind resistance
Maintenance Frequency	Requires regular maintenance	Requires regular maintenance

3.  )Installation and Cost



Item	Full Cassette RV Awning	Roll Out RV Awning
Installation Difficulty	Relatively simple and easy to install	Slightly more complex
Cost	Slightly higher cost due to materials and structure	More cost-effective

3. How to Use and Maintain a Full Cassette RV Awning Correctly?

In order to extend the service life of the full cover RV awning, in addition to a sturdy and stable frame, correct use and maintenance are also essential.

1. ) How to Install Correctly

• Experienced installers are required to refer to the user manual for installation. Because the position and distance of the brackets of each brand are different, experienced installers are required to install it strictly in accordance with the user manual.

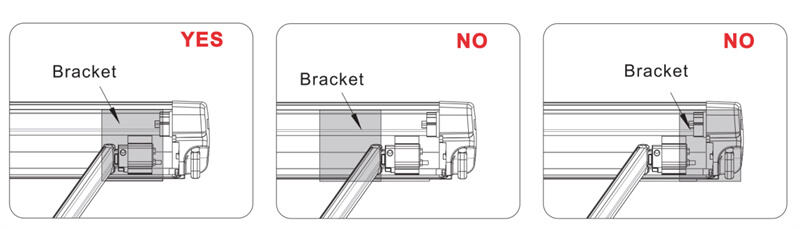

• During installation, please make sure that the brackets can hold the back-plate where the arm joints are settled, if not, the arm is easy to break and the casing is easy to deform, causing the awning to be unable to be closed; if it hold, the overall load-bearing capacity of the arm can be increased, and the overall life of the arm and the awning can be enhanced.

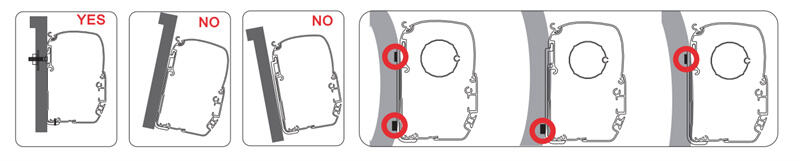

• The side-mounted RV awning brackets should be perpendicular to the vehicle body to ensure that the awning can be opened smoothly and extend its service life.



2. ) Precautions for Correct Operation

Inspection before use

• Ensure the ground is flat and firm. Avoid sloped or soft terrain to prevent instability.  It is best to find a flat open space before use.
• Check the weather forecast. The awning is not suitable for strong winds or heavy rain.
• Visually check whether the brackets and screws are loose before use to ensure safety.

Precautions for opening the awning

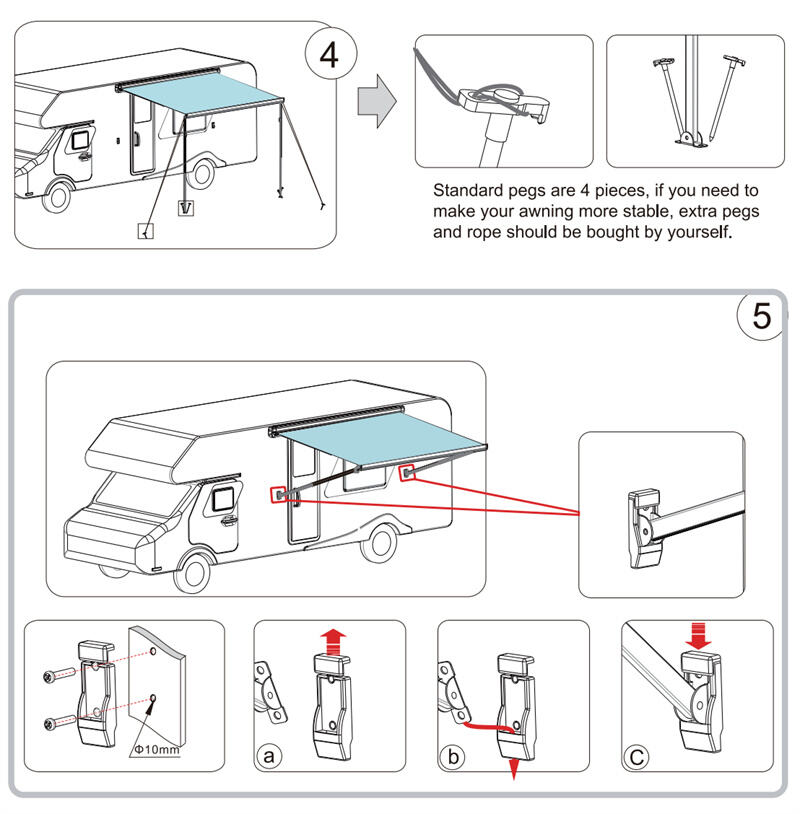

• It is recommended to use support rods when using, which can increase the service life of the awning. Angled supports for a short time use, support rods with pegs for a long time use.
• In windy conditions, the awning can be retracted or reinforced, using ropes or anti-flag arms and support legs for reinforcement.

Precautions for retracting the awning

• Retract the awning when it is dry and clean. Avoid moisture, fallen leaves, and stains that may cause fabric mildew, discoloration, and wear.
• Remove all fixtures before retracting the awning.
• Make sure the fabric is fully retracted into the casing and the casing is fully closed.

3. ) Maintenance and Repairs

 Routine Maintenance

• Scrub the fabric and casing with warm water and neutral detergent, using a soft brush.
• Do not let the corners of the RV door or other sharp objects touch the fabric to avoid wearing or tearing it.
• For motorized type, please check the power circuit and the remote control battery regularly.
• Periodically check and tighten all screws and connectors, and apply lubricant to moving parts to ensure smooth operation.

 Common Issue repairs

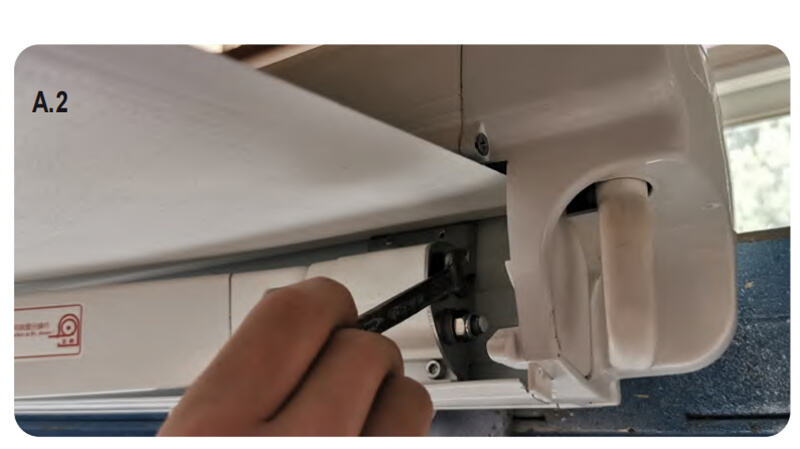

• Lead bar inclined: Adjust the upper bolt of the dual shock absorber by tightening or loosening slightly on one side where the lead bar is lower (ensure that shock absorber bolts are not blocked in the upper slots)

• Lead bar doesn't close properly: Open the awning completely, stick a thinner tape on the end of the left/right side roller tube to increase the diameter of the tube until the awning can be closed totally
• Fabric replacement
• Arms replacement

4.  Customer Distribution and Trend Analysis of Full Cassette RV awning

1. ) Customer Distribution and Trend Analysis

•  Europe: The main market for high-end RV customers

In the European RV market, especially in Germany, France, and Italy, the penetration rate of full cassette awnings is high.

Customers prefer products with a simple appearance and complete functions. The full cassette awning has become a standard or high-end option.

Common brands such as Fiamma, Thule, and Dometic all vigorously promote the full-cover series.

•  North America: Oriented towards functionality and durability

Although some markets in North America still prefer semi-hoods (due to vehicle model considerations), mid-to-high-end users are gradually leaning towards full hoods, especially the Snowbirds group that use them all year round (migratory birdwatchers).

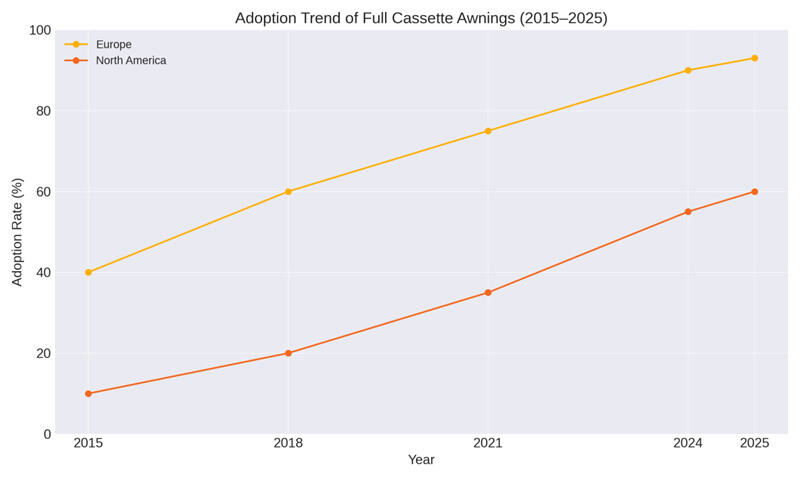

Trend Comparison Chart

The above chart shows the adoption rate trend of box awning in Europe and North America from 2015 to 2025. It can be clearly seen that:

• Europe

It has risen rapidly, increasing from approximately 40% in 2015 to an estimated 93% in 2025, showing a stable upward trend.



• North America: The vehicle models are different. Due to the

downgrading of consumption, many campers choose to purchase a mini camper, so they need a box awning.

It started relatively late but grew rapidly, increasing from 10% in 2015 to approximately 60% in 2025.



Summary:

The popularity of full cassette RV awning is not only the result of the product's own advantages, but also reflects the trend of RV users shifting from "occasional use" to "frequent use and quality travel".



5.   Recommended Brand: Awnlux Full Cassette RV Awning



If you are looking for a full cover RV awning brand that combines cost-effectiveness, durability, and aesthetics, Awnlux is a choice worth considering. As a professional manufacturer of RV shading equipment established in 2010, Awnlux, relying on its R&D and manufacturing base in Shanghai, has exported its products to multiple markets, including Europe, America, and Australia. Particularly, it holds over 30% of the market share in Australia, 10% in the United States, and 70% in China.

Popular model recommendations

• `W5510 Wall-mounted box awning: Suitable for most RVS, trailers, and campers, available in black and white frame colors.

• W5810 top-mounted box awning: Suitable for campers with non-vertical body, Windows, or insufficient side space.



Reasons for Recommending the Awnlux Full Cassette RV Awning



Core Advantages

• Full enclosure protection design: It adopts an aluminum alloy shell, fully covering the awning fabric and mechanical components, effectively preventing dust, rain, and ultraviolet rays, and extending the service life.
•  Multiple control modes: It offers both manual and electric control systems to meet the operational needs of different users.
•  High-quality materials: 100% waterproof and UV-resistant PVC awning fabric is used, which has excellent weather resistance.
•  Diverse size options: Offering a variety of width options ranging from 150cm to 400cm, suitable for different types of RVS and campers.
